►Audi Q7 ►Troubleshooting ►Fuses and bulbs ◀Fuses

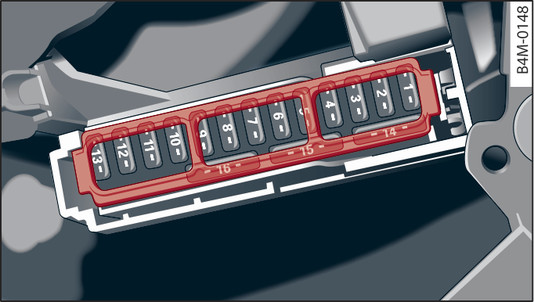

Fig. 344 Dash panel (driver s side): Fuse carrier with plastic frames
Fig. 344 Dash panel (driver s side): Fuse carrier with plastic frames
Fuse carrier
No.
Electrical equipment
2
Telephone
4
Head-up display
5
Audi music interface
6
A/C control console (front)
7
Steering column lock
8
Infotainment display
9
Instrument cluster
10
Infotainment control console
11
Light operating unit
12
Steering column electronics
14
Infotainment
15
Electric steering column adjustment
16
Heating for steering wheel
