Audi Q7 Troubleshooting Fuses and bulbs Fuses

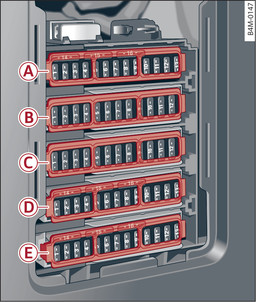

Fig. 342 Driver s footwell (LHD vehicles): Fuse carrier with plastic frames
Fig. 342 Driver s footwell (LHD Audi Q7s): Fuse carrier with plastic frames

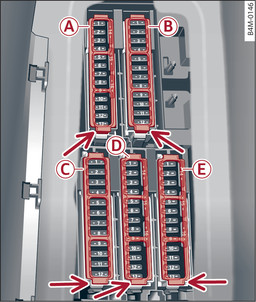

Fig. 343 Front passenger s footwell (RHD vehicles): Fuse carrier with plastic frames
Fig. 343 Front passenger s footwell (RHD Audi Q7s): Fuse carrier with plastic frames
Fuse carrier -A- (brown)
No.
Electrical equipment
1
Crankshaft heating
2
Air mass meter
3
Exhaust flaps
4
Vacuum pump, heating water pump, particulate sensor, biodiesel sensor
5
Brake light sensor
6
Engine valves
7
Lambda probes, air mass meter
8
Coolant pump, high-pressure pump, high-pressure control valve, air mass meter
9
Heating water pump
10
Oil pressure sensor, oil temperature sensor
11
Clutch travel sensor
12
Engine valves
13
Radiator fan
14
Injectors
15
Ignition coils
16
Fuel pump
Fuse carrier -B- (red)
No.
Electrical equipment
1
Ignition coils
2
Engine valves
5
Engine mountings
7
Dash panel
8
Air conditioner (blower)
Fuse carrier -C- (black)
No.
Electrical equipment
1
Seat heating, front
2
Windscreen wipers
3
Headlight electronics (left-side)
4
Panorama sun roof
5
Door control unit, front left
6
Sockets
7
Door control unit, rear right
9
Headlight electronics (right-side)
10
Windscreen/headlight washer system
11
Door control unit, rear left
12
Auxiliary heating
Fuse carrier -D- (brown)
No.
Electrical equipment
1
Seat ventilation, seat heating, interior mirror, A/C control console (rear)
2
Gateway
3
Sound actuator/exhaust sound system
5
Water valve (gearbox)
8
Night vision assist, ioniser, HomeLink
9
Adaptive cruise control
11
Video camera
12
Matrix LED headlight/LED headlight (right side)
13
Matrix LED headlight/LED headlight (left side)
14
Rear window wiper
Fuse carrier -E- (red)
No.
Electrical equipment
1
Anti-theft alarm system
2
Engine control unit
3
Lumbar support
4
Selector mechanism (automatic gearbox)
5
Horn
6
Electro-mechanical parking brake
7
Gateway control unit
8
Interior light (headliner)
10
Airbag control unit
11
Electronic stabilisation control (ESC)
12
Diagnostic connector, light sensor/rain sensor
13
Air conditioner
14
Door control unit, front right
15
Air conditioner compressor
