►Audi Q7 ►Safety ►Safety first ◀Fitting child seats
Applies to: Audi Q7s with top tether

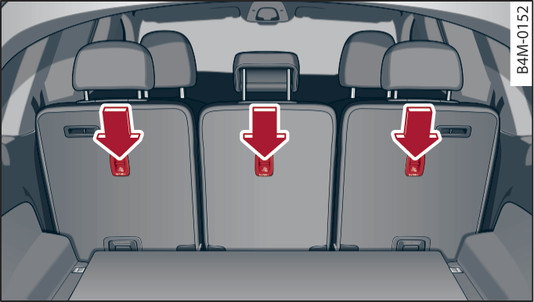

Fig. 274 Rear backrest (second row of seats): Top tether anchorages
Fig. 274 Rear backrest (second row of seats): Top tether anchorages

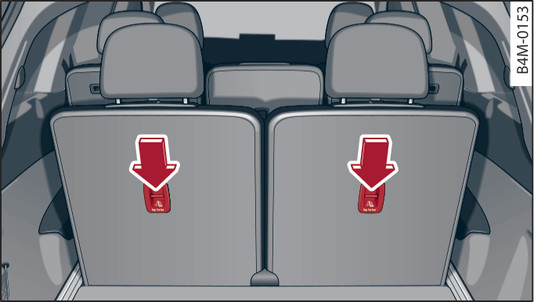

Fig. 275 Rear backrest (third row of seats*): Top tether anchorages
Fig. 275 Rear backrest (third row of seats*): Top tether anchorages
Adjust the head restraint behind the child seat to the fully extended position.
Push the mountings on the child seat into the ISOFIX anchorages until they engage audibly link►.
Pull on the child seat to check whether both sides have engaged properly.
Guide the top tether strap of the child seat underneath or past both sides of the head restraint (depending on the type of child seat) towards the rear.
Hook the strap into the top tether anchorage Fig. 274► or Fig. 275►.
Pull the tether strap tight so that the top of the child seat rests securely against the backrest.
WARNING
  • Note the important safety notes ►, ► and the instructions provided by the child seat manufacturer.
  • The anchorages in the Audi Q7 are designed only for one child seat with ISOFIX and top tether. Do not attempt to secure other types of child seat, seat belts or other objects to these anchorages - this could result in serious or possibly fatal injury.
