Applies to: Audi Q7s with Audi phone box
With the Audi phone box*, you can use the Audi Q7 s external aerial to make calls. The use of the external aerial reduces radiation in the Audi Q7 and also ensures better reception quality.

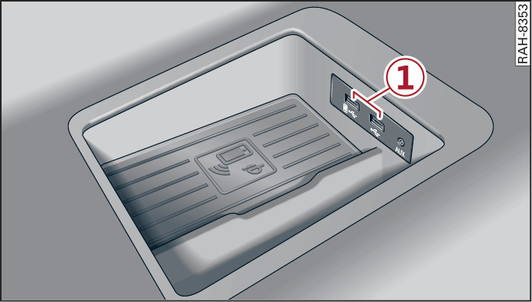

- Fig. 217 Audi phone box with connections
The Audi phone box is located in the centre console beneath the armrest -35- Fig. ►.
Important: A mobile phone must be connected via Bluetooth link►.
- To establish a connection with the external car aerial1): Place your mobile phone onto the middle of the telephone symbol in the Audi phone box Fig. 217► with the phone s display facing upwards. When doing so, make sure that there are no objects between the Audi phone box and the mobile phone.
- To charge a mobile phone wirelessly*: Place your Qi compatible2) mobile phone onto the middle of the telephone symbol in the Audi phone box Fig. 217► with the phone s display facing upwards. The mobile phone will be charged. For information on whether your mobile phone supports the Qi standard, please refer to your mobile phone s operating manual or consult the mobile device database at www.audi.com/bluetooth.
- To charge a mobile phone with a USB adapter: Connect your mobile phone to the USB socket -1- Fig. 217► using a USB charging cable.
You can charge your mobile phone using special USB adapters Fig. ►.
-1- USB adapter for mobile phones with micro USB connector*
-2- USB adapter for mobile phones with Apple Lightning connector*
-3- USB adapter for mobile phones with Apple dock connector*
WARNING
Loose objects can be flung around in the passenger compartment in the event of sudden driving or braking manoeuvres. This could result in serious injuries and also cause you to lose control of the Audi Q7. Always keep the centre armrest closed when driving.
- The mobile phone may become hot while charging wirelessly. Consider the temperature of your mobile phone when removing it. Take the mobile phone out of the Audi phone box carefully.
Note
- If the mobile phone is placed in the Audi phone box in a bag or a protective case, this may interfere with the connection to the external aerial.
- There must not be any metallic objects in the Audi phone box if you wish to use its charging function or the external aerial.*
- The charging time and the temperature vary depending on the mobile phone being used.
- To avoid malfunctions, ensure that the mobile phone is correctly placed inside the Audi phone box.
- The maximum charging capacity is 5 W.*
- An enhanced transmission quality cannot be guaranteed if more than one mobile phone is placed inside.*
- Audi recommends the use of Audi Genuine Accessories. Audi has tested these products for suitability, reliability and safety.
- USB adapters are available from Audi dealers or specialist retailers.
