►Audi Q7 ►Infotainment ◀Multi Media Interface

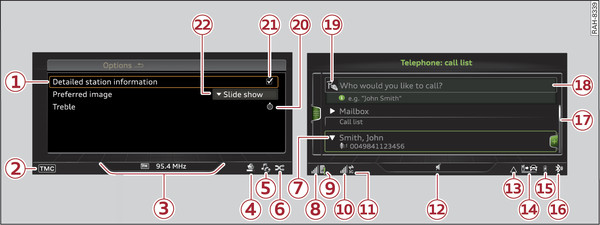

Fig. 211 Menus and symbols
Fig. 211 Menus and symbols

Symbol / marking
Explanation
-1-
Selected option
Selected function
-2-
TMC
Reception of TMC/TMCpro/online traffic information link►
-3-
Entertainment drawer
Information on the media source currently selected. Depending on the Audi Q7 s equipment, you can operate media via the open entertainment drawer link►
-4-
Jukebox* import process
Copying audio/video files to the jukebox link►
-5-
Repeat track
The track currently playing will be repeated link►
-6-
Random playback
All tracks in the playlist will be played in random order link►
-7-
Arrow
Information can be called up by pressing the rotary pushbutton
-8-
Signal strength bars for telephone
Reception strength for the telephone
-9-
Exclamation mark on the telephone
Informs you of a new event (e.g. a call/text message/e-mail). Or: The memory on the SIM card is full.
-10-
Signal strength bars for data connection*
Reception strength of the active connection, or
PIN: Enter the SIM PIN code
PUK: Enter the PUK code
SIM: Insert the SIM card link►
-11-
2G/3G/LTE*
Network coverage of the active connection link►
2G: GSM network
3G: UMTS network
LTE*: LTE network
-12-
Mute function
Audio source muted link►
-13-
Roaming
Connected mobile phone/inserted SIM card has left its mobile network
-14-
Import procedure
Import/update of contacts in the directory/call list
-15-
Battery
Battery charge level of the mobile phone connected
-16-
Bluetooth*
Bluetooth device connected link►/link►
-17-
Scrolling bar
Signifies a long list.
You can move within lists by turning the rotary pushbutton
-18-
Entry field
Entries that can be changed using the speller for letters/numbers link► or the MMI touch pad* link►
-19-
MMI touch*
Can be used via the MMI touch pad
-20-
Adjuster knob
Settings for the selected function can be made by turning the rotary pushbutton
-21-
Checkbox
Certain functions can be switched on/off by pressing the rotary pushbutton
-22-
Selection list
Settings for the selected function that can be called up by pressing the rotary pushbutton
