►Audi Q7 ►Driver assistanc... ►Parking aids ◀Surround view camera...
Applies to: Audi Q7s with surround view cameras
Fig. 175 Centre console: button
Fig. 175 Centre console: button

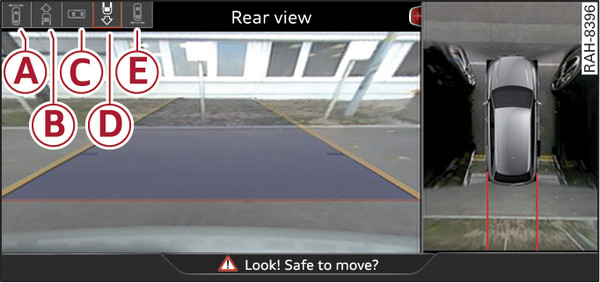

Fig. 176 Infotainment display: Selecting the mode
Fig. 176 Infotainment display: Selecting the mode
Switching on
Engage reverse gear, or
Press the button in the centre console Fig. 175►. You will hear a brief acknowledgement tone and the LED in the button will light up.
Selecting the mode
Turn the rotary pushbutton to select the symbol for the desired mode -A- to -E- Fig. 176► and then press the rotary pushbutton.
Switching off
Drive forwards faster than 10 km/h, or
Press the button, or
Switch off the ignition.
You can choose between the following modes:
-A- - Corner view (front) link►
-B- - Front view link►
-C- - Overhead view link►
-D- - Rear view link►
-E- - Corner view (rear) link►
You can also switch to the trailer view link►.
