Applies to: Audi Q7s with parking system plus/park assist

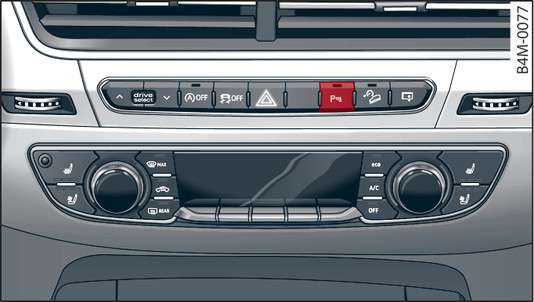

- Fig. 166 Centre console: Button for parking aid

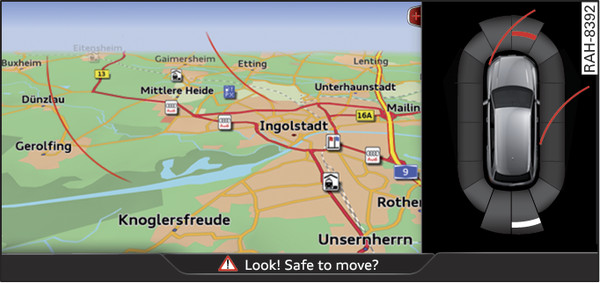

- Fig. 167 Infotainment display: Proximity graphic
Switching on
Engage reverse gear, or
Press the
button in the centre console Fig. 166►. You will hear a brief acknowledgement tone and the LED in the button will light up.
button in the centre console Fig. 166►. You will hear a brief acknowledgement tone and the LED in the button will light up.Switching off
Drive forwards faster than 10 km/h, or
Press the button, or
button, orSwitch off the ignition.
Automatic activation1)
The parking aid is activated automatically when the Audi Q7 approaches an obstacle from a distance of approx. 95 cm at speeds below 10 km/h. You will hear the warning beeps when the obstacle is within a distance of approx. 50 cm. If the parking aid is switched off by pressing the button, it is only reactivated automatically if one of the following conditions has been met:
button, it is only reactivated automatically if one of the following conditions has been met:- The Audi Q7 is driven faster than 10 km/h.
- The ignition is switched off and on again.
- The parking brake is applied and released again.
- The selector lever is moved to position P.
Segments in the graphic display
You can estimate the distance to an obstacle by referring to the segments in front of and behind the Audi Q7 or the segments surrounding the Audi Q7 (on Audi Q7s with park assist) Fig. 167►. The red lines* indicate the anticipated path of the Audi Q7, depending on the steering wheel angle. A white segment indicates an obstacle that has been detected beyond the path of travel. Red segments represent objects detected within the path of travel. The closer the Audi Q7 gets to the obstacle the closer the segments move towards the Audi Q7 in the graphic. At the latest when the penultimate segment is highlighted the Audi Q7 has reached the danger (collision) zone. Obstacles within the danger (collision) zone are shown in red, even if they are beyond the path of travel. Stop moving immediately ►, ►!
