Audi Q7 Driver assistanc... Parking aids Parking system plus
Applies to: Audi Q7s with parking system plus/park assist
The parking system plus provides acoustic and visual assistance when parking.

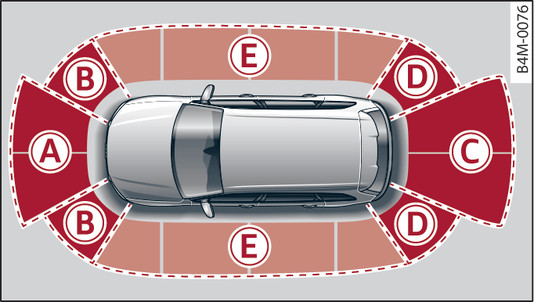

Fig. 165 Diagram
Fig. 165 Diagram
Sensors are located in the front and rear bumpers. When the sensors detect an obstacle, you are alerted by acoustic signals (beeps) and a graphic display.
Please ensure that the sensors are kept free of stickers, deposits and any other substances which could impair the function of the system. Notes on cleaning link.
Approximate range for each display zone:
-A-
1.20 m
-B-
0.90 m
-C-
1.60 m
-D-
0.90 m
-E-*
0.90 m1)
The acoustic signals sound with increasing frequency as you approach the obstacle. A warning tone will sound continuously when the Audi Q7 is less than approx. 0.30 m away from the obstacle (or less than approx. 0.20 m away in zone -E-*). Stop moving immediately , !
The volume of the warning beeps will be gradually reduced after about four seconds if the Audi Q7 remains at a constant distance from a detected obstacle (it will not be reduced if the obstacle is closer than 0.30 m).
Note
Zone -E-* is detected and analysed as the Audi Q7 is moving past. When you switch the ignition off and on again or open the door, or after the Audi Q7 has been stationary for a while, the ambient surroundings may have changed. Zone -E-* is displayed in black on the infotainment display for this reason.
