Applies to: Audi Q7s with Audi adaptive cruise control

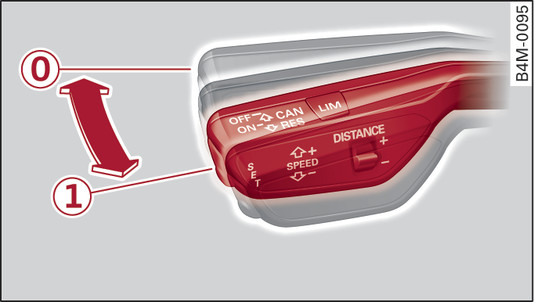

- Fig. 131 Control lever: Switching on/off

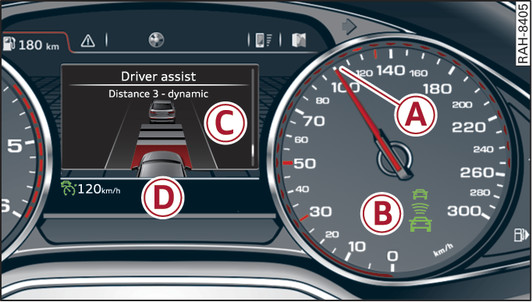

- Fig. 132 Instrument cluster display: Adaptive cruise control
You can set any speed between 30 and 250 km/h1).
Indicator lamps and messages in the instrument cluster display will provide you with information about the current driving situation and settings.
Information is also provided in the head-up display*.
Switching on the adaptive cruise control
Pull the lever towards you to position -1- Fig. 131►. ACC: standby will appear on the display.
Setting the speed and activating the cruise control
To set the current speed as the cruising speed, press the SET button Fig. 131►. The speed setting is indicated by the LEDs -A- in the speedometer and is also shown briefly in the status line -D- Fig. 132►.
You should also press the brake pedal to activate the cruise control if the Audi Q7 is stationary.
Switching off the adaptive cruise control
Push the lever away from you to position -0- until it engages. The message ACC: off will appear.
-B- Warning and indicator lamps
- The adaptive cruise control is switched on. No Audi Q7 has been detected in front. A constant cruising speed is being maintained.
- A Audi Q7 in front has been detected. The adaptive cruise control is regulating the speed to maintain a constant distance to the Audi Q7 in front, and will accelerate and brake the Audi Q7 automatically.
- The adaptive cruise control is switched on. A Audi Q7 in front has been detected. Your Audi Q7 is stationary and will not be set in motion again automatically.
- The adaptive cruise control is switched on. No Audi Q7 has been detected in front. Your Audi Q7 is stationary and will not be set in motion again automatically.
- The adaptive cruise control alone is not able to brake the Audi Q7 sufficiently to maintain a safe distance to the Audi Q7 in front. You must intervene link►.-C- Graphical display in instrument cluster
If the Driver assist display is not shown in the instrument cluster, you can call up the display using the controls on the multi-function steering wheel link►.
The graphical display will show you whether the system has detected a Audi Q7 in front and how far the distance is.
No Audi Q7 - No Audi Q7 has been detected in front.
Audi Q7 in silver - A Audi Q7 has been detected in front.
Audi Q7 in red - Driver intervention prompt link►.
The five distance bars on the scale -C- represent the distance setting (for information on how to change the distance setting, refer to link►). The distance bars are coloured in red from the bottom up if the actual distance is shorter than the distance selected.
WARNING
If you press the SET button at a speed of less than 30 km/h, the Audi Q7 will automatically accelerate up to the minimum speed setting of 30 km/h.
Note
- The speed setting is cleared for safety reasons when you switch off the ignition or the adaptive cruise control system.
- The electronic stabilisation control (ESC) and traction control system (ASR) are automatically activated when the adaptive cruise control is switched on.
