►Audi Q7 ►Setting off ►Towing a trailer ◀Driving the Audi Q7...
Before mounting equipment and accessories (e.g. bicycle rack) please observe the following notes.

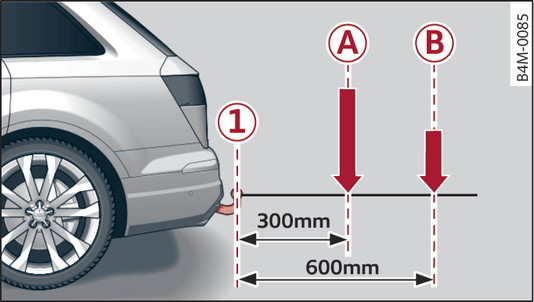

Fig. 120 Load distribution of equipment and accessories
Fig. 120 Load distribution of equipment and accessories
The equipment/accessories mounted must not protrude more than 700 mm from the ball joint -1-.
The total weight (mounted equipment plus the load) must not exceed 75 kg. The maximum weight decreases as the distance between the centre of gravity and the ball joint -1- increases.
Distance
Max. total weight (including carrier system)
-A- 300 mm
75 kg
-B- 600 mm
35 kg
Only bicycle racks for a maximum of three bicycles may be used.
Equipment mounted on the towing bracket
Make sure that the equipment mounted has been approved by the manufacturer for use on the towing bracket. If you mount unsuitable equipment, this can cause damage to the towing bracket. In an extreme case, damage to the towing bracket could cause it to break ►.
WARNING
  • Make sure that the equipment and accessories have been approved for use on Audi Audi Q7s.
  • Use of unsuitable equipment can result in severe damage to the towing bracket. The towing bracket could then break while using the equipment or while pulling a trailer – risk of accident.
  • Never use tools of any kind when swivelling out and retracting the towing bracket. This could damage the mechanism which locks the ball joint in place and impair its safety (accident risk).
