►Audi Q7 ►Setting off ►Heating and cooling ◀Auxiliary heating /...

Applies to: Audi Q7s with auxiliary heating/ventilation

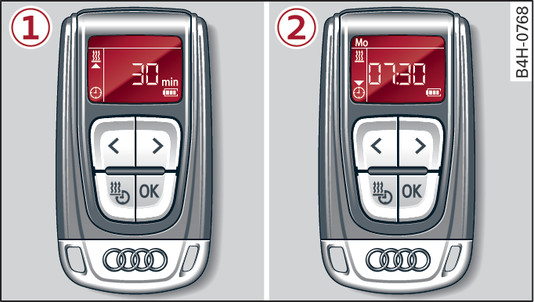

: Fig. 104 Remote control for auxiliary heating: -1- switching on immediately -2- setting the timer

Selecting a menu

Press the

button on the remote control.

You will see the symbols

and

on the left side of the display. The arrow points to the selected menu. To change menus, press the

button again.

-1- Switching on immediately

Select the

menu.

To increase/reduce the running time, press the > or < button.

To confirm the running time, press the OK button. The

symbol will flash while the data are being transmitted to the Audi Q7.

When the data have been successfully transmitted and the auxiliary heating/ventilation has been switched on, the time setting and the

symbol will appear. The remote control switches off automatically after a few seconds.

-2- Setting the timer

Select the

menu.

Enter the hour, minutes and date, one after the other. Confirm each entry with the OK button. When you confirm the last entry, the

symbol will flash and the data will be transmitted to the Audi Q7.

When the data have been successfully transmitted, the time setting and the

symbol will appear. The remote control switches off automatically after a few seconds.

Checking / clearing the settings

To check the settings, press the

button.

To clear the settings, confirm the query

OFF? or

OFF? with the OK button.

The timer settings entered on the remote control are displayed as Timer 1 on the infotainment system.

The range of the remote control transmitter is about 600 metres; however this can be greatly reduced by obstacles (buildings, etc.) between the remote control transmitter and the Audi Q7.

Fault warnings

If any of the following symbols appear when you switch on the remote control, the remote control cannot be used to switch on the auxiliary heating:

- There is a system fault in the auxiliary heating.

- The auxiliary heating cannot be switched on because there is not enough fuel in the tank.

- The auxiliary heating cannot be switched on because the Audi Q7 battery charge is too low.

- The Audi Q7 could not receive the transmitted data.
