►Audi Q7 ►Setting off ►Seats and storage ◀Luggage compartment
The stretch net* can be used to secure lighter items.

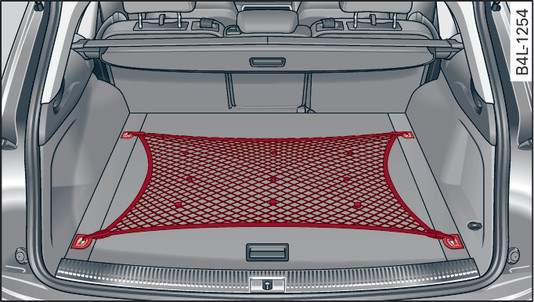

Fig. 92 Luggage compartment: Stretch net* attached
Fig. 92 Luggage compartment: Stretch net* attached

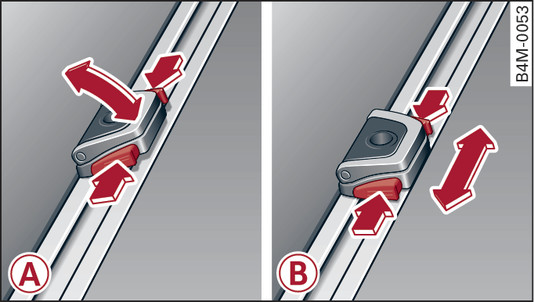

Fig. 93 Luggage compartment: Moving the fastening rings*
Fig. 93 Luggage compartment: Moving the fastening rings*
Fixed fastening rings
Insert the hooks of the stretch net* into the fastening rings Fig. 92►.
Installing / removing adjustable fastening rings*
To install the fastening rings, press the buttons on both sides and place the fastening rings on the rail -A- Fig. 93►.
To remove the fastening rings, press the buttons on both sides and take the fastening rings off the rail.
To secure the stretch net*, fold up the clips on the fastening rings.
Insert the hooks of the stretch net* into the fastening rings.
Moving the adjustable fastening rings*
To move the fastening rings, press the buttons on both sides and slide the fastening rings to the desired position -B- Fig. 93►.
