►Audi Q7 ►Setting off ►Seats and storage ◀Luggage compartment
The backrests can be folded down separately* or together.

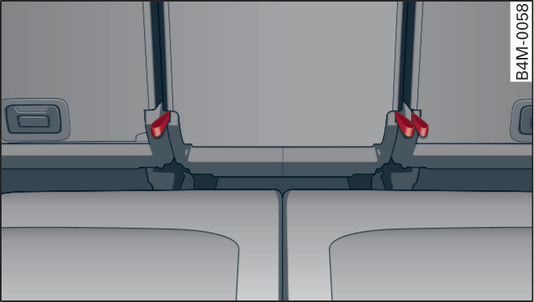

Fig. 88 Second row of seats: Release ring for centre backrest
Fig. 88 Second row of seats: Release ring for centre backrest

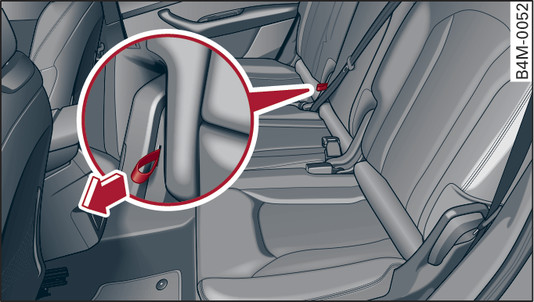

Fig. 89 Luggage compartment: Folding down second row of seats
Fig. 89 Luggage compartment: Folding down second row of seats
Folding down backrest
Pull the lever up Fig. ►. The backrest will move forwards. Or:
Pull the release ring on the rear of the seat Fig. 89►.
Engage the backrest in the lowest position.
Folding up backrest
Pull the lever upwards Fig. ► and move the backrest into its upright position until it engages ►.
Folding down centre backrest*
To release the backrest, pull the release ring on the front or rear of the seat Fig. 88► or Fig. 89►.
Fold down the backrest.
Folding up centre backrest*
Fold the backrest up into its upright position and make sure it engages ►.
The centre backrest can be folded down separately*. This load-through feature allows you to transport long items such as skis etc. in the interior of the Audi Q7.
WARNING
  • Make sure that the rear backrest is securely locked in position so that the seat belt can provide proper protection on the centre rear seat.
  • The rear backrest must always be securely latched so that objects stored in the luggage compartment will not fly forward during sudden braking.
  • On Audi Q7s with a third row of seats* the centre backrest must be engaged securely in an upright position if there are passengers sitting in the third row of seats (risk of injury).
CAUTION
When returning the backrest to an upright position, make sure that the seat belts for the outer rear seats are not caught up and damaged.
  • Please also observe the safety warnings ► and ►.
