►Audi Q7 ►Setting off ►Seats and storage ◀Luggage compartment
Applies to: Audi Q7s with manual luggage compartment cover

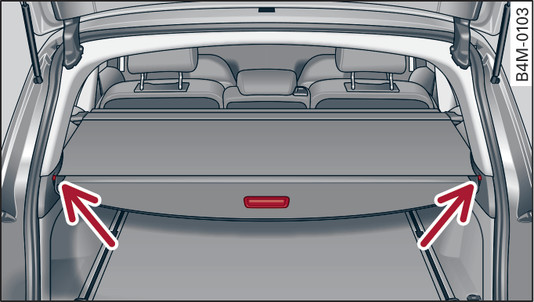

Fig. 85 Luggage compartment: Cover hooked into place
Fig. 85 Luggage compartment: Cover hooked into place

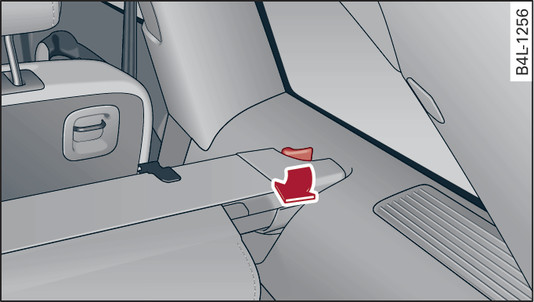

Fig. 86 Luggage compartment: Removing/installing luggage compartment cover
Fig. 86 Luggage compartment: Removing/installing luggage compartment cover
Hooking into place
Pull out the cover and hook it into the retainers on the side trim Fig. 85►.
Removing
Pull the lever in the direction of the arrow Fig. 86► and lift out the cover.
Installing
Place the left end of the cover in the left mounting in the side trim.
Place the right end of the cover in the right mounting and press it down until it engages.
WARNING
The luggage compartment cover should not be used as a storage shelf. Items placed on this cover could cause injury in an accident or if the brakes are applied suddenly.
CAUTION
  • To prevent any damage, let the luggage compartment cover retract slowly.
  • Please also observe the safety warnings ►.
