►Audi Q7 ►Setting off ►Seats and storage ◀Front seats
Applies to: Audi Q7s with electrical seat adjustment

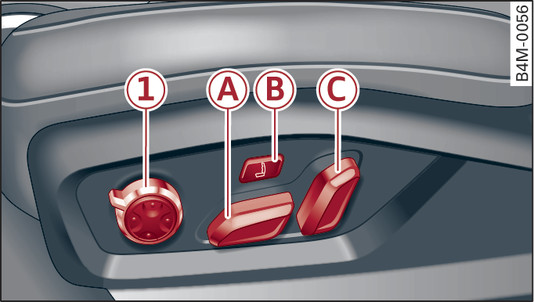

Fig. 61 Front seat: Adjuster controls
Fig. 61 Front seat: Adjuster controls
-A- - Seat forwards/backwards: Press the button forwards/backwards.
-A- - Seat height: Press the button up/down. To adjust the front of the seat cushion, press the front of the button up/down. To adjust the rear of the seat cushion, press the rear of the button up/down.
-B- - Massage function* on/off. Use the multi-function button to select the type of massage link►.
-C- - Backrest angle: Press the button forwards/backwards.
-1- - Lumbar support or multi-function button* link►. To adjust the lumbar support, press the appropriate side of the button.
WARNING
  • The electric front seat adjustment also works when the ignition is off. To avoid accidental injuries, never leave children unattended in the Audi Q7.
  • Never adjust the driver s seat when the Audi Q7 is moving - this could lead to an accident.
  • Be careful when adjusting the seat height. Careless or uncontrolled use of the height adjustment can cause injuries.
  • Do not drive with the backrests of the front seats reclined too far as otherwise the seat belt and airbag could fail to restrain the wearer properly in an accident, possibly leading to injury.
