►Audi Q7 ►Controls and displays ◀Instruments and controls
Applies to: Audi Q7s with head-up display

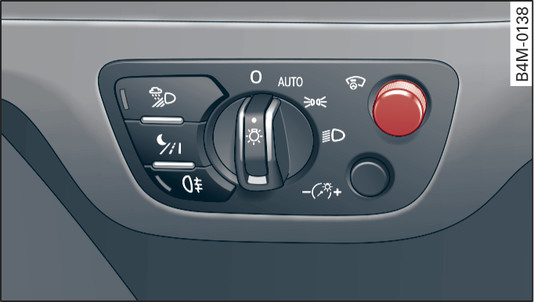

Fig. 17 Dashboard: Button for head-up display
Fig. 17 Dashboard: Button for head-up display
The head-up display projects certain warnings and selected information from driver assist functions* and the navigation system* onto the windscreen. The display appears within the driver s field of vision.
Switching on/off
To switch the head-up display on/off, press the button Fig. 17►.
Height adjustment
The height of the head-up display can be adjusted to your individual requirements.
Sit in the correct position in your seat link►.
Turn the button to adjust the display.
Settings on infotainment system
Select the following on the infotainment system: MENU button > Car > left control button > Driver assist > Head-up display.
Display contents
The settings on the infotainment system allow you to specify which information is shown in the display. Possible options include navigation messages*, adaptive cruise control* and night vision assist*.
The display of certain information and some of the red warning lamps cannot be deactivated on the infotainment system.
Brightness
You can adjust the brightness of the display via the infotainment system. In addition, the display brightness is reduced automatically as the daylight starts to fade. The basic level of brightness is determined by the instrument lighting setting link►.
Display rotation
On the infotainment system, you can rotate the display clockwise or anti-clockwise.
CAUTION
Do not place any objects over the opening for the head-up display to avoid scratching the glass cover.
Note
  • The display may be harder to see in unfavourable light conditions or if you are wearing polarised sunglasses.
  • To be able to see the display as clearly as possible, adjust the position of your seat and the height setting for the head-up display.
  • A special windscreen is required for the head-up display.
◀back
