►Audi Q7 ►Controls and dis... ►Instruments and... ◀Instrument cluste...
The instrument cluster is the driver s information centre.

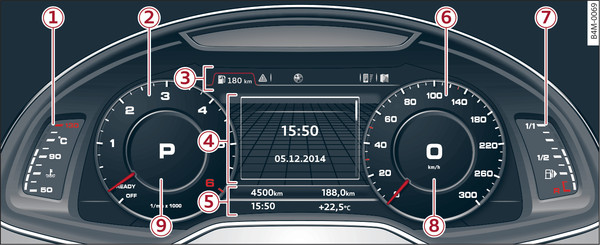

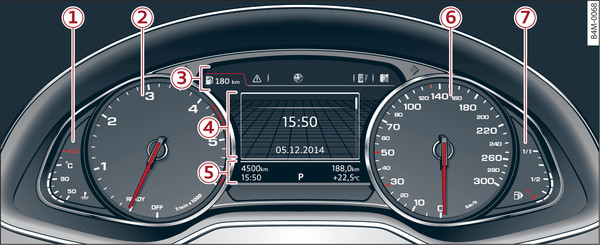

Fig. 3 Overview of instrument cluster (analogue version)
Fig. 3 Overview of instrument cluster (analogue version)
Fig. 4 Overview of instrument cluster (Audi virtual cockpit)
Fig. 4 Overview of instrument cluster (Audi virtual cockpit)
-1-Coolant temperature gauge ►
-2-
Rev counter ►
-3-Tab area ►
-4-
Central area with:
-5-Status line (displayed on one or two lines)
-6-Speedometer
-7-Fuel gauge ►
-8-Additional display on right (two separate sections in extended view)
-9-Additional display on left (two separate sections in extended view)
Further warning/indicator lamps may appear in the rev counter -2-, in the speedometer -6-, in the status line -5- and above or below the central area -4-, depending on the instrument cluster version.
Most of the illustrations on the following pages show the analogue instrument cluster. The display and position of the elements may be different in the Audi virtual cockpit*.
WARNING
Do not rely on the outside temperature display as an ice warning. Bear in mind that there may be patches of ice on the roads even at outside temperatures around +5 ℃ – risk of accident!
Note
  • Depending on the Audi Q7 equipment, the instrument lighting (for dials and needles) may be switched on when the ignition is on and the Audi Q7 s lights are off. The illumination of the dials and needles is automatically reduced as it becomes dark outside and is eventually switched off altogether. This function is intended to remind the driver to switch on the dipped headlights in good time.
  • You can change the measurement units for temperature or speed, etc. via the infotainment system link►.
  • When the Audi Q7 is stationary or travelling at very low speeds, the temperature displayed may be slightly higher than the actual outside temperature as a result of the heat radiated from the engine.
  • At temperatures below +5°C a snowflake symbol appears next to the temperature display ►.
