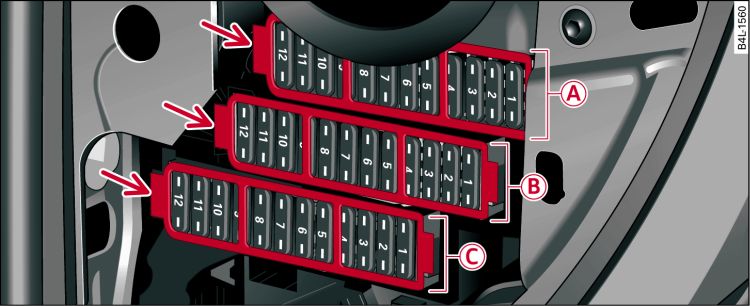

- Fig. 1 Left side of dash panel: Fuse carrier with plastic frames
Fuse list for left-hand drive vehicles
| No. |
Electrical equipment |
amps |
|---|---|---|
| Fuse carrier -A- (red) | ||
| 1 |
DC-DC converter |
5 |
| 2 |
Automatic anti-dazzle interior mirror |
5 |
| 3 |
MMI |
7.5 |
| 5 |
Auxiliary heating/spindle actuator |
20/30 |
| 6 |
Lumbar support (driver's seat) |
10 |
| 7 |
Electric windows (left side of vehicle) |
35 |
| 8 |
Door control unit (left side of vehicle) |
15 |
| 9 |
Tyre pressure monitoring system |
5 |
| 10 |
Electronic ignition lock,
Electric steering column adjustment |
30 |
| 11 |
Steering column switch module |
10 |
| 12 |
Smart power module (convenience) |
5 |
| Fuse carrier -B- (brown) | ||
| 3 |
Seat ventilation (left side of vehicle) |
15 |
| 4 |
Wiper system |
30 |
| 5 |
Rain sensor |
5 |
| 6 |
Horn |
25 |
| 7 |
Smart power module (driver) |
30 |
| 8 |
Smart power module, driver
(lights on left side of vehicle) |
25 |
| 9 |
Smart power module, driver
(lights on right side of vehicle) |
25 |
| 10 |
Instrument cluster |
10 |
| 11 |
Headlight washers |
30 |
| 12 |
Diagnostic connector |
10 |
| Fuse carrier -C- (black) | ||
| 1 |
Headlight electronics (left side of vehicle) |
10 |
| 2 |
Audi adaptive cruise control |
5 |
| 3 |
Side view camera/heater shut-off valve |
5 |
| 4 |
Audi lane assist |
10 |
| 5 |
Rear Seat Entertainment |
5 |
| 6 |
Terminal 15, interior |
5 |
| 7 |
Oil level sensor |
5 |
| 8 |
Diagnostic connector |
5 |
| 9 |
Automatic anti-dazzle interior mirror |
5 |
| 10 |
HomeLink |
5 |
| 11 |
Gateway control unit |
5 |
| 12 |
Headlight range control |
5 |
Fuse list for right-hand drive vehicles
| No. |
Electrical equipment |
amps |
|---|---|---|
| Fuse carrier -A- (red) | ||
| 1 |
DC-DC converter |
5 |
| 2 |
Automatic anti-dazzle interior mirror |
5 |
| 3 |
MMI |
7.5 |
| 5 |
Auxiliary heating/spindle actuator |
20/30 |
| 6 |
Lumbar support (front passenger seat) |
10 |
| 7 |
Electric windows (left side of vehicle) |
35 |
| 8 |
Door control unit (left side of vehicle) |
15 |
| 9 |
Tyre pressure monitoring system |
5 |
| 11 |
A/C control console (rear) |
10 |
| 12 |
Smart power module (convenience) |
5 |
| Fuse carrier -B- (brown) | ||
| 3 |
Seat ventilation (left side of vehicle) |
15 |
| 4 |
Wiper system |
30 |
| 5 |
Rain sensor |
5 |
| 6 |
Horn |
25 |
| 7 |
Power sockets (rear) |
25 |
| 8 |
Cigarette lighter, front |
20 |
| 9 |
Power sockets (front) |
25 |
| 10 |
A/C control console |
10 |
| 11 |
Headlight washers |
30 |
| 12 |
Diagnostic connector |
10 |
| Fuse carrier -C- (black) | ||
| 1 |
Headlight electronics (left side of vehicle) |
10 |
| 2 |
Audi adaptive cruise control |
5 |
| 3 |
Side view camera/heater shut-off valve |
5 |
| 4 |
Audi lane assist |
10 |
| 5 |
Rear Seat Entertainment |
5 |
| 6 |
Seat heating, rear |
5 |
| 7 |
Oil level sensor |
5 |
| 8 |
Diagnostic connector |
5 |
| 9 |
Automatic anti-dazzle interior mirror |
5 |
| 10 |
HomeLink |
5 |
| 11 |
Airbag |
5 |
| 12 |
Air conditioner |
5 |
