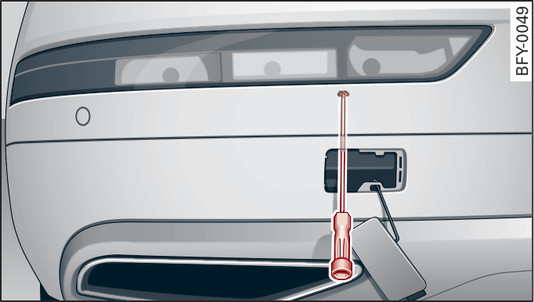

- Fig. 316 Rear lights in left bumper: Loosening screw
-
- Fig. 317 Detail of rear light: Removing bulb
Removing
Check which of the bulbs is defective.
Switch off the ignition and the lights.
Take the screwdriver and the interchangeable Torx bit out of the vehicle tool kit link►.
To detach the cover cap from the bumper press the left side of the cap inwards.
Slacken off the screw
Fig. 316►.
Carefully pull the light unit out of the bumper ►. You can unplug the connector to make it easier to change the bulb.
Turn the bulb holder with the defective bulb anti-clockwise to release it from its seat
Fig. 317►,
and remove it from the light unit.
Pull the bulb out of the holder ►.
Installing
Insert the new bulb into the holder ►.
Re-install all the parts in the reverse sequence.
Check that the bulb functions correctly.
