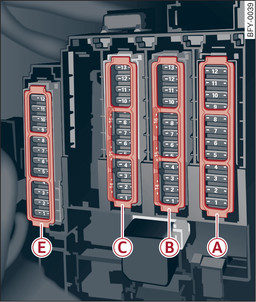

- Fig. 308 Luggage compartment, left side: Fuse carrier with plastic frames
Fuse carrier -A- (black) | |
No. | Electrical equipment |
2
|
Windscreen heating |
3
|
Windscreen heating |
5
|
Air suspension/suspension control |
6 | Automatic gearbox |
7
|
Rear window heating |
8 | Seat heating, rear |
9 | Rear lights (left-side) |
10 | Belt tensioner (left-side) |
11 | Central locking system |
12 | Boot lid |
Fuse carrier -B- (red) | |
No. | Electrical equipment |
Not used | |
Fuse carrier -C- (brown) | |
No. | Electrical equipment |
2
|
Telephone |
3
|
Lumbar support |
4
|
Audi side assist |
5
|
Preparation for Rear Seat Entertainment |
7
|
NFC for unlocking/starting vehicle |
8
|
Remote control receiver, auxiliary heater |
9
|
Climate-controlled cup holder |
10
|
TV tuner |
11
|
Control unit for additional battery |
12
|
Garage door opener |
13
|
Reversing camera, surround view cameras |
14
|
Right rear lights |
16
|
Belt tensioner (right-side) |
Fuse carrier -E- (red) | |
No. | Electrical equipment |
2
|
Sound amplifier |
3
|
AdBlue heating |
5
|
Towing bracket (right lights) |
7
|
Towing bracket |
8
|
Towing bracket (left lights) |
9
|
Towing bracket (electrical socket) |
10
|
Sport differential |
11
|
AdBlue heating
|
