Audi Q5Self-help Fuses and bulbsFuses
To see whether a fuse has blown, check whether the metal strip has melted.

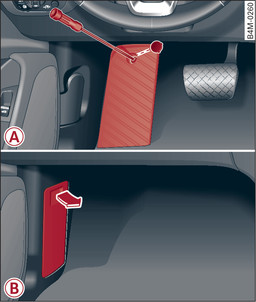

Fig. 303  Driver s footwell (LHD vehicles): Foot rest -A-. Front passenger s footwell (RHD vehicles): Cover -B-
Fig. 303  Driver s footwell (LHD vehicles): Foot rest -A-. Front passenger s footwell (RHD vehicles): Cover -B-

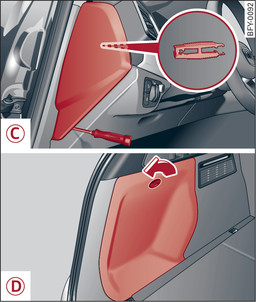

Fig. 304 Dash panel on driver s side (LHD/RHD vehicles): Cover -C-. Luggage compartment, left side: Cover-D-
Fig. 304 Dash panel on driver s side (LHD/RHD vehicles): Cover -C-. Luggage compartment, left side: Cover-D-
The fuses are located in the footwell underneath the foot rest (on LHD vehicles) -A- or behind a cover (on RHD vehicles) -B-. Further fuses are located at the end of the dash panel (driver s side) -C- and behind the cover on the left side of the luggage compartment -D-.
Switch off the ignition and all electrical equipment.
Refer to the following tables to identify the fuse for the failed component.
Take the screwdriver and the interchangeable Torx bit out of the vehicle tool kit link.
Remove the foot rest or the appropriate cover.
If fitted, pull the coloured plastic frame out of the fuse carrier fig. (you can then dispose of the plastic frame).
Take the clip from the inside of the cover -C-.
Use the clip to pull out the fuse.
Blown fuses should always be replaced with a fuse of the same rating.
Refit the foot rest or cover.
Colour coding for fuses
Colour
Rating
in amperes
black
1
purple
3
light brown
5
brown
7.5
red
10
blue
15
yellow
20
white or transparent
25
green
30
orange
40
WARNING
Never attempt to repair a fuse or replace a blown fuse by fitting a fuse with a higher ampere rating. This could damage the electrical system – risk of fire!
CAUTION
If a newly replaced fuse blows again after a short time, the electrical system must be checked by a qualified workshop as soon as possible.
Note
  • Unassigned fuse locations are not shown in the tables below.
  • Some of the items of equipment listed in the tables below are only fitted on certain models or are optional extras.
