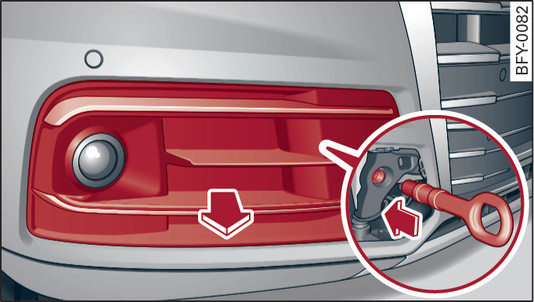

- Fig. 301 Front bumper: Fitting the towline anchorage
The screw connection for the towline anchorage is located on the right side of the front bumper.
Take the towline anchorage out of the vehicle s tool kit link►.
Detach the trim panel by pulling sharply in the direction indicated (arrow)
Fig. 301►.
Screw the towline anchorage into the screw connection as far as it will go and tighten it with the box spanner.
Put the towline anchorage back in the tool kit after use.
WARNING
If the towline anchorage is not screwed in as far as the stop, there is a risk of the screw connection shearing off during towing - risk of accident!
CAUTION
The trim cover is secured to the bumper by several retaining hooks. Do not use force when removing/installing the trim cover to avoid damaging any components.
