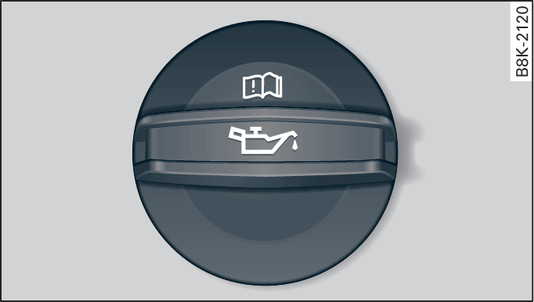

- Fig. 279 Engine compartment: Engine oil filler cap
Please refer to the safety notes ►.
Switch off the engine.
Open the bonnet link►.
Unscrew cap
from oil filler opening
Fig. 279►.
from oil filler opening
Fig. 279►.
Carefully add 0.5 litres of suitable oil link►.
Screw filler cap back on.
Close the bonnet link►.
Switch the ignition on again after two minutes and read off the current oil level on the infotainment system link►.
If the oil level is too low, add some more engine oil.
WARNING
- Ensure that no oil comes into contact with hot engine components when topping up: this could cause a fire.
- The oil filler cap must be properly closed to prevent oil from squirting onto the hot engine or exhaust system while the engine is running – risk of fire!
- Wash your skin thoroughly if it comes into contact with engine oil.
- Engine oil is poisonous and must be kept out of the reach of children.
- Store the engine oil safely in the original container.
CAUTION
No additives should be used with engine oil. Any damage caused by the use of such additives would not be covered by the factory warranty.
For the sake of the environment
- Never pour oil down drains or into the ground.
- Always observe local regulations when disposing of empty oil canisters.
