Applies to: vehicles with multi-function steering wheel and telephone
-

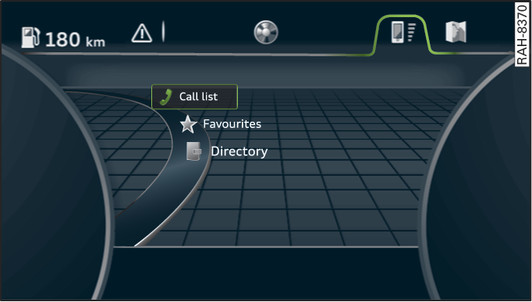

- Fig. 187 Example: Telephone functions on the driver information system
Important: A mobile phone must be connected to the MMI link►.
Applies to: vehicles with multi-function steering wheel
Press the MODE button repeatedly on the multi-function steering wheel until the telephone tab is displayed.
Applies to: vehicles with multi-function steering wheel plus
Press the
button repeatedly until the telephone tab is displayed.
button repeatedly until the telephone tab is displayed.
Press the left control button link►.
The following functions are available on the driver information system, depending on the vehicle equipment:
- To call a contact: Select and confirm Call list / Favourites / Directory. Select and confirm a contact.
Directory contacts*: Only directory contacts for which a telephone number is stored are displayed in the driver information system. If several telephone numbers are stored for one contact, the list of stored telephone numbers is displayed first when the contact is selected.
Call list*: The call lists contain all received, placed and missed calls.
Caller information*: Depending on whether the caller is stored in the directory and whether the telephone number is transmitted with the call, the name, the telephone number or Unknown will appear on the display of the driver information system.
Functions for an incoming call
- To answer a call: Press the left thumbwheel when there is an incoming call.
- To ignore a call: Select and confirm Ignore when there is an incoming call.
- To end a call: Select and confirm End call.
Functions during a call:
- To make a further call*: Select and confirm Hold. Press the left control button > Directory or Call list > desired entry.
- To answer a further call when you are talking on the phone and have another call on hold*: Select and confirm Answer. The current call will be replaced by the incoming call.
Other functions are:
Microphone off*: If you select and confirm this option, the caller will no longer be able to hear you; you will still be able to hear the caller.
Hold/Resume*: You can put a call on hold and retrieve it later from the hold queue.
Switch*: You can switch between two phone calls (one of them will be on hold at any given time). Select End call to end whichever call is active. The call on hold will remain in the hold queue and can be retrieved by selecting Resume call.
Conference*: Up to five callers and one caller on hold can take part in a conference (depending on the mobile network provider). To set up a further call, select Hold* to place all the members of an existing conference on hold. You can then press the left control button to place another call to a contact in the directory or the call list. Select Continue* if you want to retrieve all participants in an existing conference from the hold queue.
Note
- The functions of the telephone can be operated using the multi-function steering wheel only if the telephone equipment was installed at the factory.
- The functions of the telephone depend on your mobile phone and whether they are supported by your mobile network service provider.
- The option Call waiting* must be activated on your mobile phone and on the MMI for you to be made aware of incoming calls during a conversation. The call options depend on your mobile network service provider. For more information, contact your service provider.
