►Audi Q5►Infotainment◀Multi Media Interface
The Multi Media Interface (MMI) combines different communication, navigation* and entertainment systems in your Audi. You can operate your MMI system via the MMI control console, the multi-function steering wheel or the speech dialogue system*.

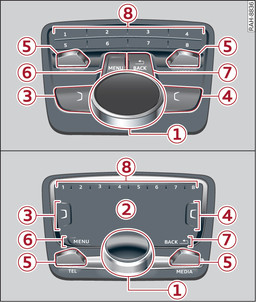

Fig. 164 Applies to: vehicles with automatic gearbox MMI control consoles with integrated shortcut buttons. Top: without MMI touch. Bottom: with MMI touch
Fig. 164
Applies to: vehicles with automatic gearbox
MMI control consoles with integrated shortcut buttons. Top: without MMI touch. Bottom: with MMI touch

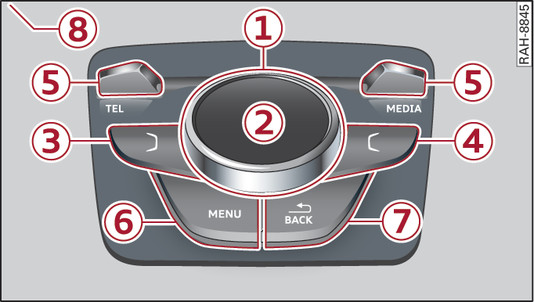

Fig. 165 Applies to: vehicles with manual gearbox MMI control console with shortcut buttons fitted separately on centre console
Fig. 165
Applies to: vehicles with manual gearbox
MMI control console with shortcut buttons fitted separately on centre console

Overview of MMI control console

-1- Rotary pushbutton; may include joystick function*
“Selecting and confirming a function”►
“Rotary pushbutton with joystick function” ►
-2- MMI touch pad* ►
-3- Left control button ►
-4- Right control button ►
-5- Buttons for calling up menus directly ►
-6- MENU button ►
-7- BACK button ►
-8- Shortcut buttons ►
Note
The shortcut buttons -8- Fig. 165► for the MMI control console (manual gearbox) are located on the centre console.
