Applies to: vehicles with rear cross-traffic assist
-

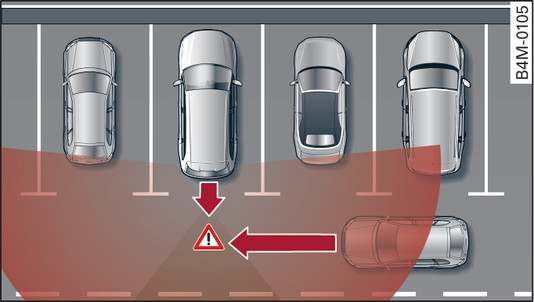

- Fig. 136 Example diagram
-

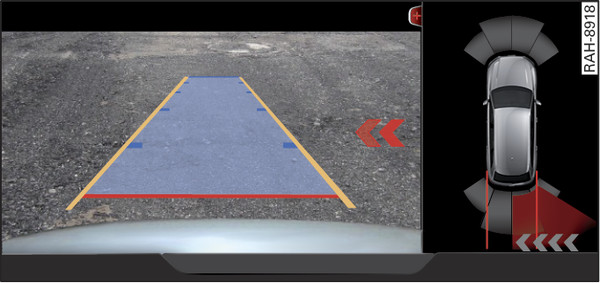

- Fig. 137 Infotainment: Rear cross-traffic assist display
Activating the rear cross-traffic assist
The rear cross-traffic assist is automatically activated when you switch on the parking aid link► or select reverse gear.
The rear cross-traffic assist can warn you about potential collisions with traffic approaching from the side while you are reversing at a speed of up to approx. 15 km/h. The system uses the radar sensors
fig.► to monitor the area behind and to the side of the vehicle when you are leaving a parking space. Where possible, it detects objects, such as cars, as they approach the vehicle
Fig. 136►.
If critical cross-traffic is detected when reversing out of a parking space, the system reacts as follows:
- Graphic display: A graphic with a red arrow symbol appears on the infotainment display. The arrow indicates the direction from which the object is approaching Fig. 137►.
- Warning tone: A tone may sound continuously as an additional signal when you are reversing.
- Automatic brake jolt: A short sharp application of the brakes may also warn against a potential collision with an approaching object.
The warning tone and the automatic brake jolt only occur while you are reversing.
WARNING
- The purpose of the rear cross-traffic assist is to assist the driver; it cannot prevent a collision on its own. The driver must always intervene personally. As the driver you are always responsible for braking in good time.
- Please note that the rear cross-traffic assist may apply the brakes unexpectedly. Always secure your luggage to prevent damage and possible injury.
- After an automatic brake jolt, no further brake jolt will occur within 20 seconds.
- If the rear cross-traffic assist gives an acoustic warning signal, the parking aid may no longer be able to warn you against obstacles it has detected.
- The radar sensor vision can be impaired, e.g. by leaves, snow, heavy road spray or dirt. Clean the area in front of the sensors fig.►.
WARNING
- The rear cross-traffic assist does not react to people and cannot warn you of all approaching objects, such as cyclists. Always monitor the road and the area around the vehicle; do not rely on the sensors alone.
- The rear cross-traffic assist does not react if the vehicle is parked at an angle or parallel to the roadside or is so far into a parking space that it is hidden by the surrounding vehicles.
CAUTION
Please also observe the notes ►.
Note
- The automatic brake application with increasing brake force can be cancelled by applying the brakes yourself or by pressing the accelerator firmly.
- In certain situations, a warning may be given by the rear cross-traffic assist even if there is no traffic in the critical zone, for instance when parking or manoeuvring the vehicle in reverse.
- The rear cross-traffic assist is deactivated automatically if you deactivate the ESC.
- The system is not available in towing mode.
