Audi Q5Setting off Storage and conveni...Luggage compartment
Applies to: vehicles with folding backrest
The backrests can be folded down separately* or together.

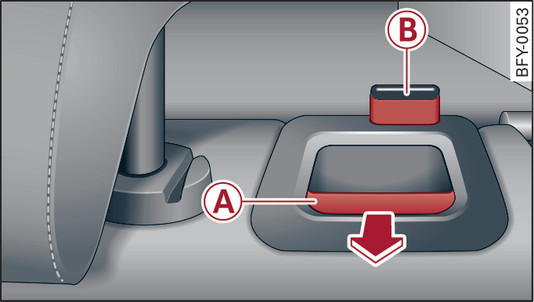

Fig. 74 Outer backrest: Release lever and safety knob
Fig. 74 Outer backrest: Release lever and safety knob
Fig. 75 Centre backrest: Release lever and release button* (example)
Fig. 75 Centre backrest: Release lever and release button* (example)
Folding outer backrest up/down
Pull the release lever -A- in the direction indicated by the arrow or pull the lever* fig. upwards. The backrest will move forwards. Allow it to engage in the lowest position.
Move the backrest back into its upright position until it engages and the red marking -B- is no longer visible .
Folding centre backrest up/down
Pull the release lever at the top -1- and fold down the backrest -2-, or:
Press down the release button* -3-. The red marking will become visible. Fold down the backrest.
Move the backrest back into its upright position until it engages and the red marking -B- is no longer visible .
WARNING
  • Be careful when releasing and folding down the backrest! Carelessness when folding it down could result in injuries.
  • Make sure that the rear backrest is securely locked in position so that the seat belt can provide proper protection in the rear seats.
  • The rear backrest must always be securely latched so that objects stored in the luggage compartment will not fly forward during sudden braking.
  • Always check to see if the locking mechanism is properly engaged by pulling the backrest forwards.
CAUTION
  • If you need to adjust the front seats when the rear backrest is folded forwards, please take care to avoid damaging the rear head restraints.
  • Lower the rear head restraints before you fold down the backrest link – risk of damage!
  • When returning the backrest to an upright position, make sure that the seat belts for the outer rear seats are in their guides so that they cannot be caught up and damaged in the catches for the backrest. It is also important to remove any other objects from the rear seats to avoid damaging the backrest when folding it forwards.
