Applies to: vehicles with air suspension
-

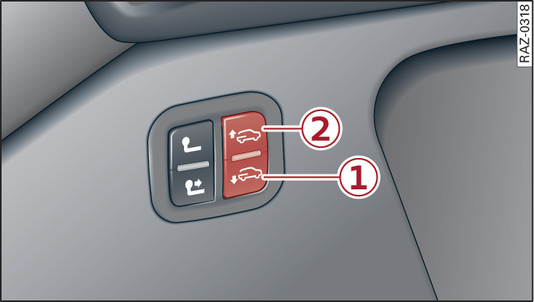

- Fig. 73 Luggage compartment (left side): Button for lowering rear of vehicle
The rear of the vehicle can be lowered to facilitate loading. Important: All doors on the vehicle must be closed.
Open the boot lid.
Press the bottom part of the button -1-. The rear of the vehicle will then be lowered.
Press the top part of the button -2-. The rear of the vehicle will be raised.
The LED in the button lights up while the vehicle is being lowered. Once the loading height has been reached, the LED remains lit as long as the rear of the vehicle is in the lowered position. The LED goes out again when the vehicle is raised to its original position.
The rear of the vehicle is raised automatically when a different mode is selected or when the vehicle exceeds a speed of about 2 km/h.
CAUTION
- Do not leave the vehicle parked with the rear lowered in the loading position.
- Before raising the rear of the vehicle, please make sure that there is sufficient clearance above the vehicle, especially if the boot lid is open.
Note
- The vehicle will not be lowered if there is insufficient pressure in the air reservoir when the ignition is switched off. In this case the LED will flash three times.
- If necessary, the pressure in the air reservoir will be restored when the vehicle is driven at a speed of above 40 km/h.
