►Audi Q5►Setting off ►Storage and conveni...◀Luggage compartment
Applies to: vehicles with luggage compartment cover

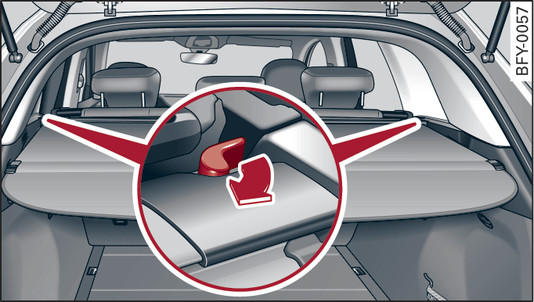

Fig. 71 Luggage compartment: Cover hooked into place
Fig. 71 Luggage compartment: Cover hooked into place

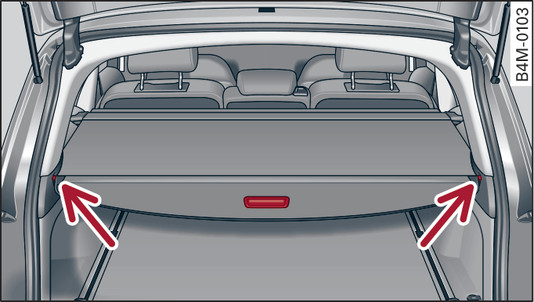

Fig. 72 Luggage compartment: Removing/installing luggage compartment cover
Fig. 72 Luggage compartment: Removing/installing luggage compartment cover
Hooking into place
Pull out the cover and hook it into the retainers on the side trim Fig. 71►.
Removing
Pull both levers in the direction of the arrow Fig. 72► and lift out the cover.
Installing
Insert both sides of the cover into the mountings in the side trim.
Press the cover down until it engages.
WARNING
The luggage compartment cover should not be used as a storage shelf. Items placed on this cover could cause injury in an accident or in the event of sudden driving or braking manoeuvres.
CAUTION
To prevent any damage, let the luggage compartment cover retract slowly.
