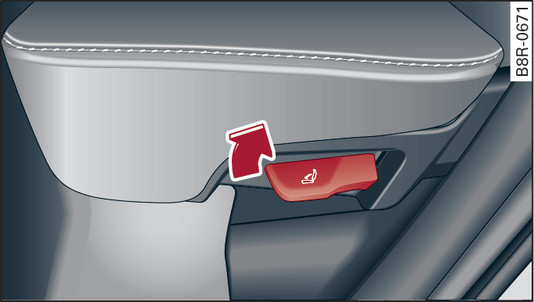

- Fig. 59 Adjusting backrest angle*
-
- Fig. 60 Moving seat backwards or forwards*
Adjusting backrest angle*
Pull the lever upwards and push the backrest back as desired
Fig. 59►.
Release the lever and push back further against the backrest until it engages.
Pull the lever upwards so that the backrest folds forwards. Then release the lever again and press the backrest back to return the seat to its "normal" position.
Moving seat backwards or forwards*
Pull up the bar and move the seat forwards/backwards
Fig. 60►.
Release the bar and move the seat further until the catch engages.
WARNING
- For safety reasons, never adjust the seats while the vehicle is moving; this could lead to an accident.
- Careless use of the seat adjustment controls can cause injuries!
- Always check to see if the locking mechanism is properly engaged by pulling the backrest forwards.
