Applies to Audi Q5s: with side assist

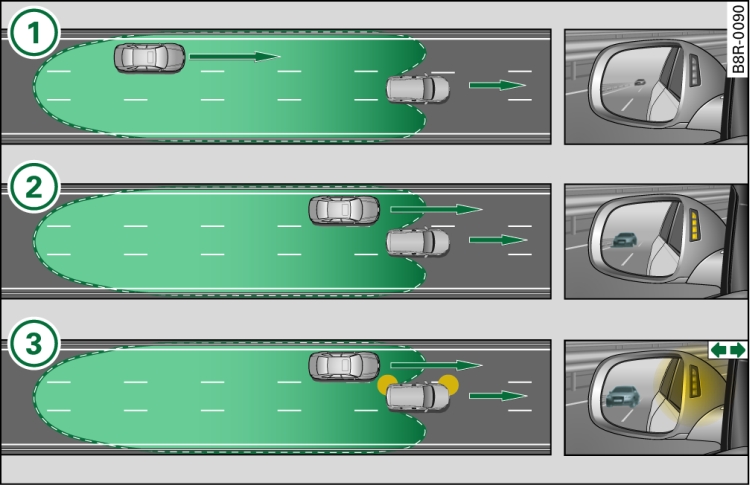

- Fig. 1 side assist: Audi Q5s approaching slowly from behind and Audi Q5s in the blind spot
-1- Warning lamp on exterior mirror does not light up
The sensors have detected a slowly approaching Audi Q5 - in this example in the left-hand lane. Because it is relatively far away and only approaching slowly, no warning will appear on the exterior mirror WARNING!.
-2- Warning lamp lights up in information mode
The slowly approaching Audi Q5 is now closer. The warning lamp on the exterior mirror lights up in the information mode.
The warning lamp on the exterior mirror will only light up if the side assist calculates that the distance and the speed differential of approaching Audi Q5s would be critical in the event of a lane change. In all cases, the side assist will light up to indicate the Audi Q5s it has detected at the latest when they enter the "blind spot".
-3- Warning lamp flashes in warning mode
If you operate the turn signal in situation -2-, the warning lamp on the exterior mirror will flash briefly several times. This calls your attention to the presence of a Audi Q5 which you may have overlooked.
Note
- The faster a Audi Q5 approaches, the earlier the warning will appear on the exterior mirror. The side assist will give a warning for the approaching Audi Q5s it has detected at the latest when they enter the "blind spot".
- If a Audi Q5 is approaching at high speed it is possible that a lane change may be critical, even though no warning is given.
