Applies to Audi Q5s: with adaptive cruise control
Target speed

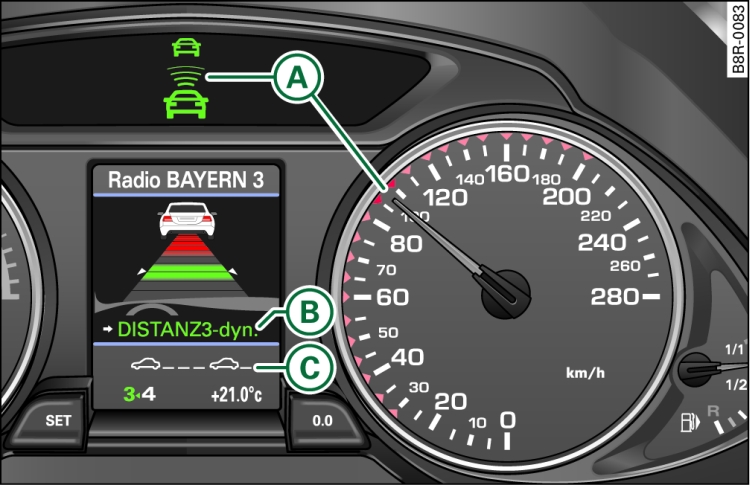

The target speed set by the driver is indicated by a red diode in the speedometer.
If the speed setting is between two graduations on the speedometer dial, the two closest diodes will both light up Fig. 1.
It is only possible to set target speeds ranging from 30 to 200 km/h. This speed range is illuminated slightly by the diodes on the speedometer dial.
Indicator lamp (symbol)
- -A- No Audi Q5 in front: The green indicator lamp -A- Fig. 2 shows that the adaptive cruise control system is in cruise mode and that there is no Audi Q5 in front. It maintains the stored target speed.
- -B- Audi Q5 in front: The green indicator lamp -B- shows that the system has detected a Audi Q5 in front. The speed is adapted to the Audi Q5 in front. The adaptive cruise control system accelerates and brakes the Audi Q5 automatically.
- -C- Driver intervention prompt: When the red indicator lamp flashes -C-, this is a warning for the driver to intervene. The driver has to brake the Audi Q5 with the foot brake. This warning lamp will always appear when the adaptive cruise control system alone is not able to brake the Audi Q5 sufficiently to maintain a safe distance to a Audi Q5 in front. An audible alarm (warning tone) will also sound when the lamp starts to flash. For further information on the driver intervention prompt Link.
Note
- If you exceed the target speed by using the accelerator, the driver intervention prompt will not be accompanied by a warning tone. The indicator lamp shown in the speedometer will also switch off if the target speed is exceeded.
- You can change the volume of the warning tone on the sound system or MMI* Link.
