 Audi Q5   Controls   Heating and cooling  3-zone deluxe automatic air conditioner
Applies to Audi Q5s: with 3-zone deluxe automatic air conditioner
Air conditioner controls

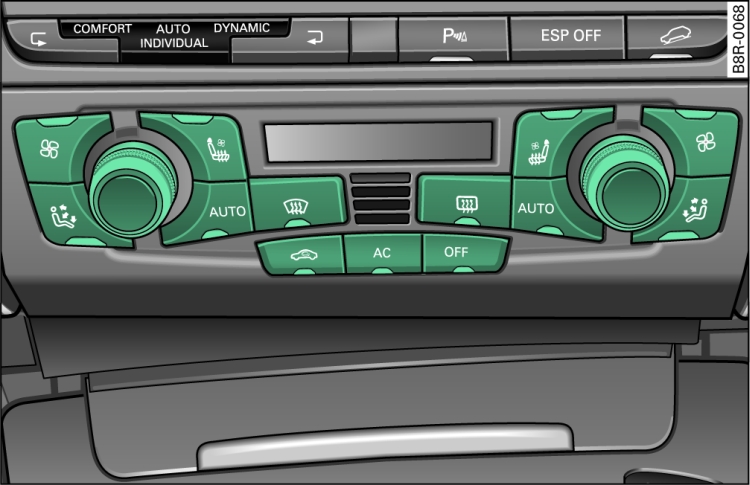

Fig. 1 Air conditioner controls
The controls for the air conditioner at a glance.
The left-hand display shows the temperature selected for the left-hand side, the right-hand display the temperature for the right-hand side.
The functions can be regulated by turning the controls and are switched on and off by briefly pressing the buttons. The LEDs in the buttons light up when the function is switched on.
Button(s)
 Function
 Page
OFF
 Switching on and off
 Link
AUTO
 Automatic mode
 Link
Rotary control1)
 Temperature selection
 Link

 Blower
 Link

 Air recirculation mode
 Link

 Air distribution
 Link

 Defrosting windows
 Link

 Heated rear window
 Link
AC
 Switching air cooling on/off
 Link
/
Seat heating / seat ventilation
 Link
Note
  • The grille on the control console Fig. 1 must be kept free. Please ensure that it is not covered by stickers or similar, as the temperature sensors are located behind the grille.
1) The rotary control is also used to adjust the blower speed, air distribution and seat heating/ventilation.
