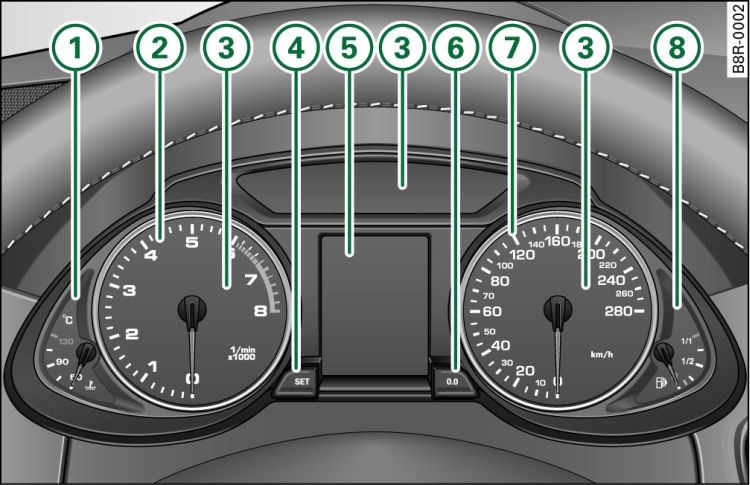

- Fig. 1 Overview of instrument cluster
The instrument cluster is the driver's information centre.
| -1- | Coolant temperature gauge |
| -2- | Rev counter |
| -3- | Warning and indicator lamps |
| -4- | SET button |
| -5- |
Display
|
| -6- | Reset button for trip recorder |
| -7- | Speedometer |
| -8- | Fuel gauge |
Note
The instrument lighting (illumination of dials and needles) is switched on when the ignition is on and the Audi Q5's lights are off. The instrument lighting is dimmed automatically as the daylight starts to fade. This function is intended to remind the driver to switch on the dipped-beam headlights in good time when light conditions become poor.
