 Audi MMI   MMI control console  Basic operation
Buttons on MMI control console

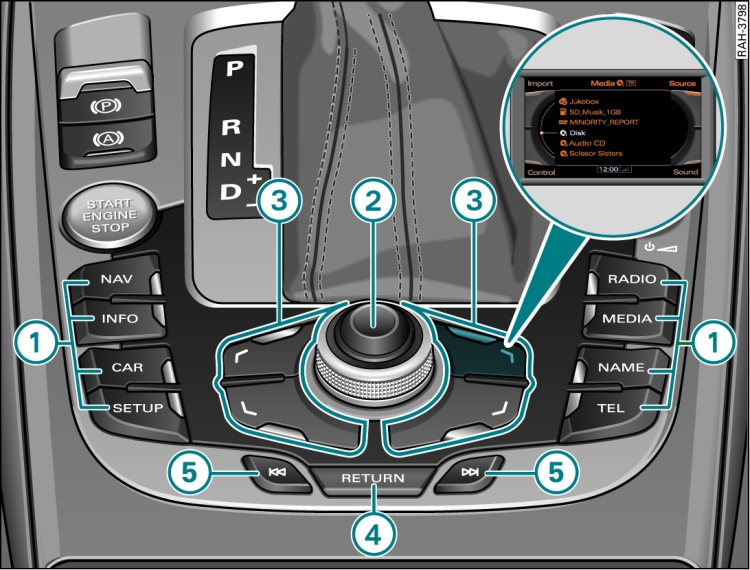

Fig. 1 Buttons on MMI control console
You can operate the functions of the MMI system by pressing and turning the buttons on the MMI control console.
-1- Function selector buttons
Press one of the function selector buttons to activate the function shown on the button. For example, simply press the RADIO button to switch the system to the radio mode.
Use the SETUP button to call up additional settings for the current function.
-2- Rotary pushbutton with joystick
To select a menu option in the MMI display, turn the rotary pushbutton in the required direction and then press it. You can use the joystick to move the crosshairs on a map or to operate the DVD menu Link.
-3- Control buttons
To activate a function indicated in one of the four corners of the display, press the corresponding control button for that corner of the display. For instance, the top right control button corresponds with the top right corner of the display Fig. 1.
-4- RETURN button
Press the RETURN button to cancel an entry that has not yet been confirmed or to return to the previous menu level.
-5- Arrow buttons
Press the I or I button to tune to the previous or next radio station or TV* channel.
Press the I button to select the next track of a CD or iPod (if an iPod is being used). Press the I button within the first ten seconds of a track to go back to the previous track. After the first ten seconds, you can press this button to go back to the start of the track that is currently playing.
When in CD mode, press and hold the I button to activate the fast reverse function, or press and hold the I button to activate the fast forward function.
