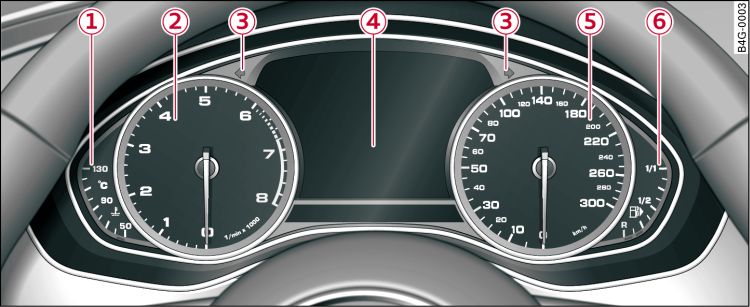

- Fig. 1 Overview of instrument cluster
The coolant temperature gauge -1- Fig. 1 only works when the ignition is switched on. In order to avoid possible damage to the engine, please read the following notes for the different temperature ranges.
Engine cold
If the LEDs are still in the lower range of the display, this indicates that the engine has not yet reached operating temperature. Avoid high engine speeds, full acceleration and heavy engine loads.
Normal temperature
In normal operation the LEDs will settle somewhere in the centre of the display once the engine has reached operating temperature. The LEDs may also rise further up the display when the engine is working hard at high outside temperatures. This is no cause for concern, provided the warning lamp
does not light up in the instrument cluster. If the LEDs reach the top part of the display and the warning lamp appears in the instrument cluster display, the coolant temperature is too high
Link.
does not light up in the instrument cluster. If the LEDs reach the top part of the display and the warning lamp appears in the instrument cluster display, the coolant temperature is too high
Link.
Caution!
- Additional lights and other accessories in front of the air inlet reduce the cooling effect of the radiator. At high outside temperatures and high engine loads, there is a risk of the engine overheating.
- The front spoiler also ensures proper distribution of the cooling air when the vehicle is moving. If the spoiler is damaged this can reduce the cooling effect, which could cause the engine to overheat. You should obtain professional assistance.
