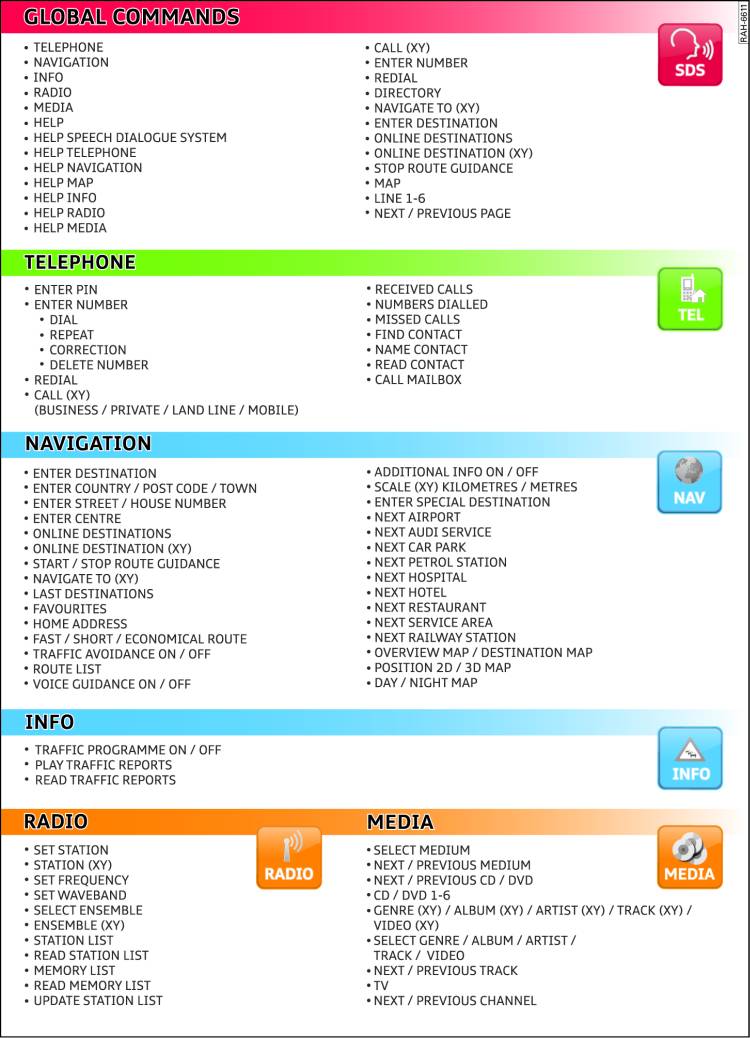

- Fig. 1 Overview of commands for the speech dialogue system
-
- Fig. 2 Command display on MMI display
-
- Fig. 3 Selecting an entry from a list
-
- Fig. 4 Talk button and right thumbwheel
Commands
When you press the talk button
the
command display with a list of possible commands for the active
menu will appear. The command display can be switched on or
off in the Setup MMI menu
Link.
the
command display with a list of possible commands for the active
menu will appear. The command display can be switched on or
off in the Setup MMI menu
Link.
The speech dialogue system uses two types of command:
- Global commands (irrespective of the current mode), e.g. NAVIGATION
- Commands of the mode that is currently active, e.g. FAVOURITES in Navigation mode
The overview of commands
Fig. 1
gives you a general outline of the most important commands of
the speech dialogue system.
Help commands
If the speech dialogue system is activated
Link, you can say a help command. Important commands are:
- HELP
- HELP SPEECH DIALOGUE SYSTEM
- HELP TELEPHONE*
- HELP NAVIGATION
- HELP MAP
- HELP INFO
- HELP RADIO
- HELP MEDIA
Say the command BACK to
return to the Help menu that was last activated.
Selecting an entry from a list
The entries in a list, e.g. missed calls*,
help topics, road names etc., are displayed with position numbers
on the MMI display
Fig. 3.
You can select a line by saying the line number, e.g.
LINE FOUR or by repeating
the entry shown in the MMI display. You can also select an entry
via the MMI by turning the rotary pushbutton to mark the entry
and pressing the rotary pushbutton.
Give the commands NEXT PAGE
or PREVIOUS PAGE to scroll
up and down the list.
Voice guidance
To switch the voice guidance cues for navigation on or off,
say the command VOICE GUIDANCE
ON or OFF.
Adjusting the volume
To adjust the volume of the spoken cues with the multi-function
steering wheel, scroll the right thumbwheel -2-
Fig. 4
up or down while the system is playing a cue.
Guided dialogue assistance
If the speech dialogue system is switched on
Link and you do not say a command, the speech
dialogue system will say Please
enter a command or say help. If you still give no command,
the speech dialogue system will suggest important commands.
Example of guided dialogue assistance (telephone*
function activated):
| Operation/ Command |
Cue from speech dialogue system |
|---|---|
| Press the talk button
briefly |
Acoustic signal:
Beep |
| No command given |
Please
enter a command or say help |
|
HELP |
Please
choose one of the following topics: |
| All telephone
commands |
|
| Important
telephone commands |
|
| Commands
for phoning |
|
| Commands
for call lists |
|
|
Commands for the directory |
|
|
Commands for entering a
PIN |
Note
- Speech control is possible for all main functions (except Car and Tone) that are currently displayed on the MMI screen or are running in the background (e.g. radio).
- You can interrupt a spoken cue from the speech
dialogue system any time by pressing the talk button on the
multi-function steering wheel
Fig. 4 ; you can now enter a new command. - You can also adjust the volume by turning the ON/OFF button Link.
