Applies to: vehicles with xenon headlights
The air cleaner housing has to be removed in order to access the right headlight.

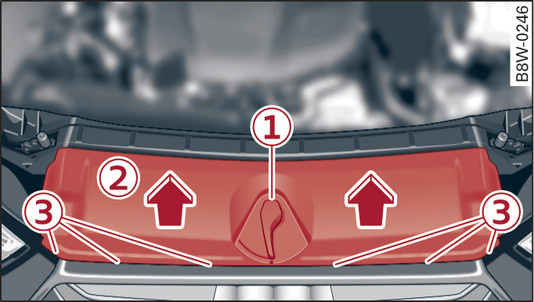

- Fig. 364 Engine compartment: Removing trim panel above radiator grille

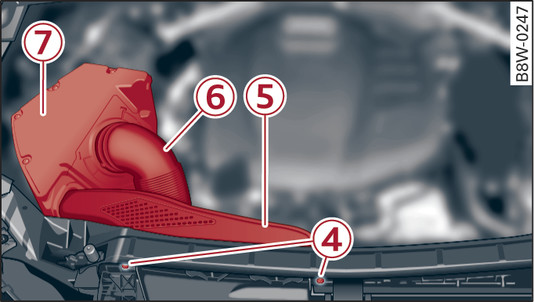

- Fig. 365 Engine compartment: Removing air cleaner housing
Removing
Switch off the ignition and the lights.
Open the bonnet.
Take the screwdriver and the interchangeable Torx bit out of the vehicle tool kit link►.
Remove the bonnet release lever -1- by pressing the button at the top end of the lever and at the same time pulling the release lever upwards to detach Fig. 364►.
Carefully unhook the trim panel -2- above the radiator grille upwards -3- and remove the panel.
Remove the retaining screws -4- Fig. 365►.
Detach the air duct -5- from the air cleaner housing -7-.
Unfasten the hose clip and disconnect the air hose -6- from the air cleaner housing -7-.
Depending on the engine version, you may have to pull the fuel line out of the mounting at the air cleaner housing.
Carefully lift out the air cleaner housing -7-.
Installing
Perform all of the above steps in reverse sequence.
CAUTION
Please exercise particular care when removing/installing to avoid damage to components.
Note
The layout and procedure may differ slightly on some engine versions. The installation/removal procedure should be adapted as appropriate.
