Applies to: vehicles with seat belt height adjustment
Seat belt height adjusters can be used to adjust the height of the shoulder portion of the seat belt.

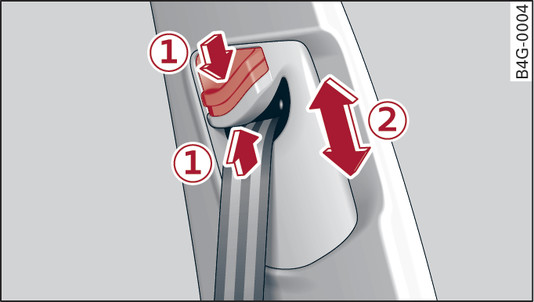

- Fig. 308 Belt height adjustment – top guide fitting
The shoulder section of the belt should be fitted across the centre of the collar bone close to the body ►.
To move the seat belt higher, slide the guide fitting -2- upwards.
To move the seat belt lower, squeeze the release mechanism -1- and slide the guide fitting -2- downwards.
After adjusting, pull the shoulder belt sharply to check that the catch on the guide fitting is engaged securely.
Note
It is also possible to adjust the height of the front seats to obtain the best position for the front seat belts.
