Applies to: vehicles with Audi tablet
The Audi tablet is located in the rear cabin on the back of the driver s/front passenger s seat. The Audi tablet is attached to a holder on the seat. You can remove the Audi tablet from the holder and take it with you.

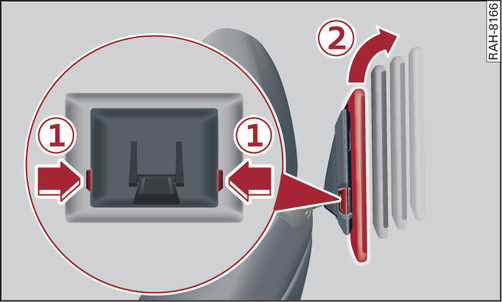

- Fig. 263 Back of driver s/front passenger s seat: Removing Audi tablet

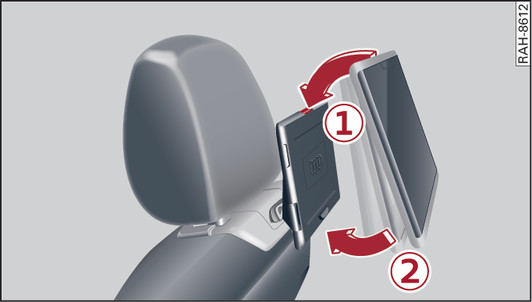

- Fig. 264 Back of driver s/front passenger s seat: Attaching Audi tablet to holder
Removing the Audi tablet
Important: Make sure that no accessories (such as headphones) are connected to the Audi tablet.
Grip the Audi tablet with both hands throughout the entire procedure.
Simultaneously press the two buttons -1- Fig. 263► on the holder for the Audi tablet.
Slide the Audi tablet upwards -2- Fig. 263► out of the holder.
Attaching the Audi tablet
Important: The two buttons -1- Fig. 263► must be in the retracted position.
Grip the Audi tablet with both hands throughout the entire procedure.
Attach the Audi tablet at the contact strip -1- Fig. 264►.
Press the Audi tablet carefully towards the holder -2- Fig. 264► until you feel it engage.
WARNING
Always attach the Audi tablet securely to the holder after use so that it is not catapulted through the vehicle in the event of a braking manoeuvre or accident - risk of injury!
Note
If the Audi tablet is not in the holder and is used in unusually high/low ambient temperatures, it may switch itself off for safety reasons.
