Applies to: vehicles with navigation system

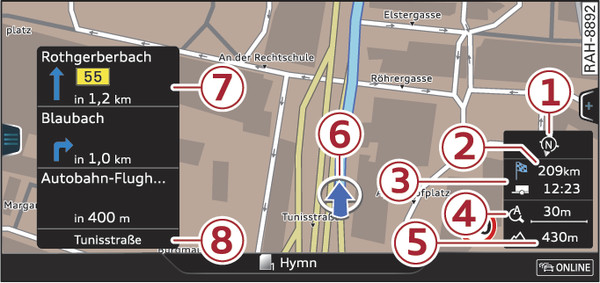

- Fig. 233 Example: Standard map with crosshairs switched off

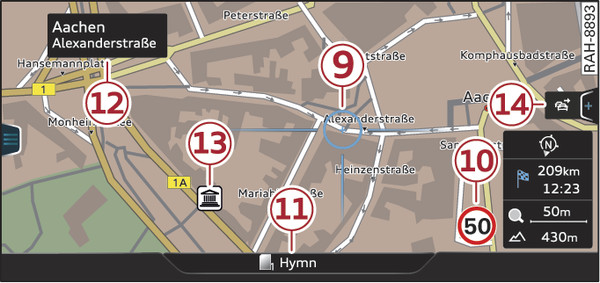

- Fig. 234 Example: Standard map with crosshairs switched on
Press the NAV/MAP button repeatedly until the map is displayed Fig. 233►.
Zooming in/out on map
- Turn the rotary pushbutton clockwise or anti-clockwise. You can also zoom in or out on the map using the MMI touch pad* link► if you have activated the crosshairs. Or: Scroll the left thumbwheel on the multi-function steering wheel* link►.
Switching the crosshairs on/off
- To switch on the crosshairs: Press the rotary pushbutton while the map is displayed Fig. 233►.
- To switch off the crosshairs: Press the BACK button.
With the crosshairs switched off Fig. 233►:
| -1- | Orientation. For more information, please refer to link►. |
| -2- | Distance to destination and estimated time of arrival. |
| -3- | When the trailer mode function is switched on  , a corresponding symbol is shown next to the arrival time. |
| -4- | Scale: Turn the rotary pushbutton clockwise/anti-clockwise to zoom in or out. When the Automatic zoom function is switched on , an “A” for “automatic” is shown in the zoom symbol. |
| -5- | Altitude |
| -6- | Location of the vehicle |
| -7- | Route information: Various information is displayed during route guidance (e.g. the upcoming manoeuvre including the calculated distance and road name, or hazard alerts*). Traffic information or special destinations on your current route are also displayed. |
| -8- | Road the vehicle is currently on |
With the crosshairs switched on Fig. 234►:
| -9- | The crosshairs: Move the crosshairs in the desired direction using the MMI touch pad*/rotary pushbutton and select an item on the map as the destination. If the crosshairs are switched off, the road you are currently on will be displayed. |
| -10- | Speed display1): Display of the maximum speed limit on motorways, dual carriageways and other major roads. |
| -11- | Entertainment drawer*: Only available when media are active. Further information can be found on link►. |
| -12- | Additional information on the position of the crosshairs: If you move the crosshairs onto a point on the map, any existing information on the current position of the crosshairs will be displayed. Press the rotary pushbutton to call up the destination details or start route guidance. |
| -13- | Map content (special destinations, favourites). If several special destinations are located close to each other, their symbols are stacked on the map. |
| -14- | Better route  : If a better route is available for the current route guidance, this will be shown on the map together with the time saved. Further information can be found from link► onwards. |
Note
Whether the level of congestion is taken into account when the route is being calculated depends on your traffic avoidance settings link►.
