Applies to: vehicles with navigation system (SD card) and rotary pushbutton with joystick function
A location on the map can be set as a destination.

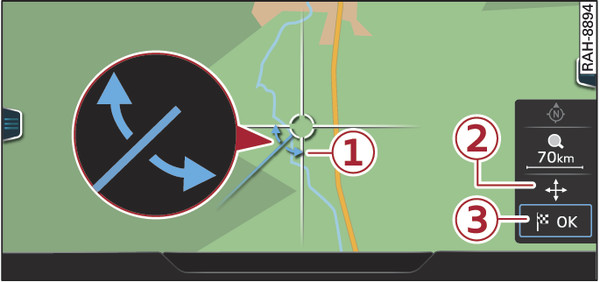

- Fig. 225 Moving the crosshairs (MMI control console without MMI touch pad)
Press the NAV/MAP button repeatedly until the map is displayed.
- To set a convenient map scale: Turn the rotary pushbutton clockwise or anti-clockwise.
- To activate the crosshairs: Press the rotary pushbutton.
- To navigate in the legend menu: Select and confirm the crosshairs mode in the legend menu -2- Fig. 225►. The crosshairs will appear on the map -1-.
- To move the crosshairs: Turn the rotary pushbutton in the direction you would like to move the crosshairs (see magnified detail Fig. 225►). Press and hold the rotary pushbutton until the crosshairs are at the desired position on the map. Press the BACK button.
- To use the destination: Select OK in the legend menu -3- Fig. 225►. If you wish to set a stopover, select and confirm Set as stopover and then Start route guidance.
- To hide the crosshairs: Press the BACK button twice.
Additional information on the point selected with the crosshairs: If you use the crosshairs to preselect a location on the map, any existing information on this location (e.g. road name, address or special destinations) will be displayed -12- Fig. ►.
