Applies to: vehicles with surround view cameras

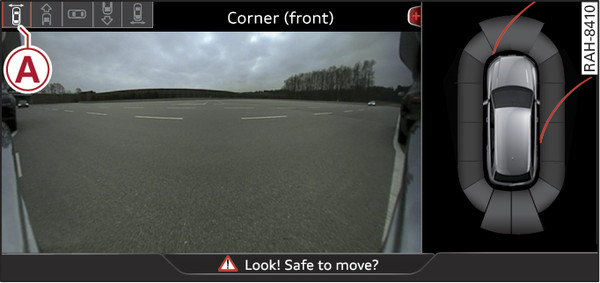

- Fig. 174 Infotainment display: Corner view (front)

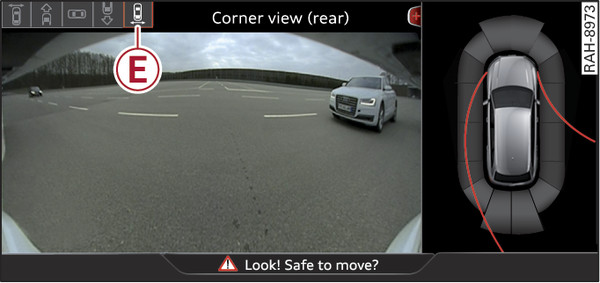

- Fig. 175 Infotainment display: Corner view (rear)
This view can be helpful, for instance, when driving out of a private property onto an obscured road. The picture shows the corner view in front of or behind the vehicle.
To display the corner view (front), select symbol -A- Fig. 174► using the rotary pushbutton and then press the rotary pushbutton.
To display the corner view (rear), select symbol -E- Fig. 175► using the rotary pushbutton and then press the rotary pushbutton.
