Applies to: vehicles with stretch net
The stretch net can be used to secure lighter items.

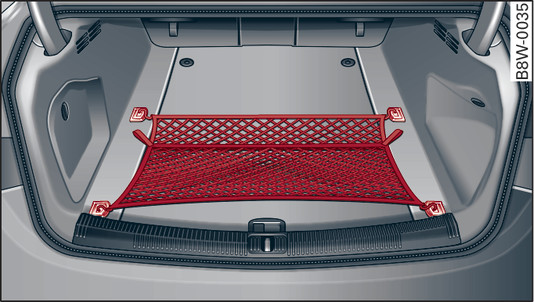

- Fig. 96 Luggage compartment: Stretch net attached

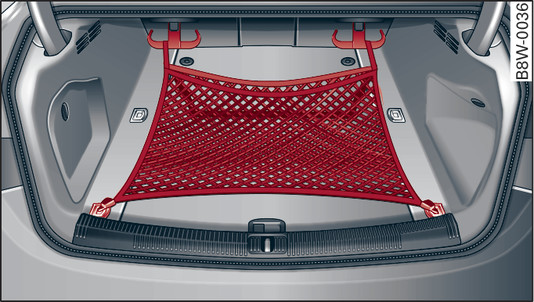

- Fig. 97 Luggage compartment: Stretch net attached
Stretch net attached
Insert the hooks of the stretch net* into the fastening rings Fig. 97►.
Stretch net attached in position as retaining net*
Secure the hooks of the stretch net to the fastening rings at the bottom of the tail panel Fig. 97►.
Pull down the retaining hooks at the top of the luggage compartment. Pull up the net and attach the loops of the net to the retaining hooks.
You can also use the hooks Fig. 97► to secure light items of luggage, such as shopping bags, etc.
The hooks will fold up again by themselves when not in use.
WARNING
The stretch net should only be used to hold objects weighing up to 5 kg. Heavier objects cannot be safely secured – risk of injury!
