►Audi A5 ►Setting off ►Seats and storage ◀Luggage compartment
Applies to: vehicles with luggage compartment cover

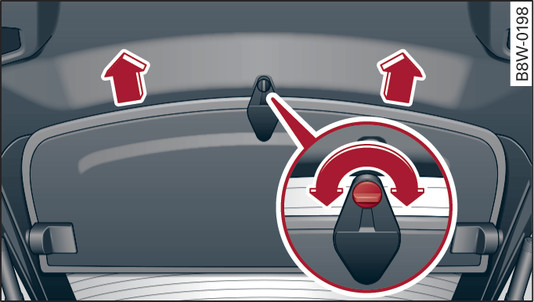

Fig. 89 Luggage compartment: Cover (with boot lid open)
Fig. 89 Luggage compartment: Cover (with boot lid open)

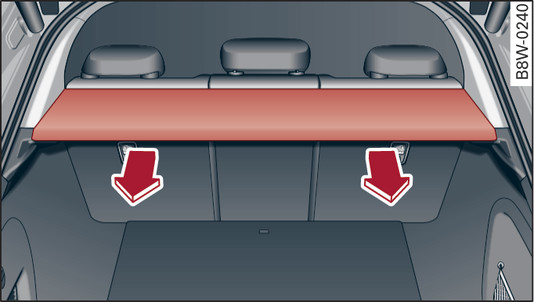

Fig. 90 Luggage compartment: Cover behind rear seats
Fig. 90 Luggage compartment: Cover behind rear seats
Removing and installing cover in boot lid
To remove the cover, turn the knob into a horizontal position.
Pull the cover out of the retainers Fig. 89► in the direction of the arrow.
To install the cover, push it upwards into the retainers so that it engages.
Turn the knob into a vertical position.
Installing/removing cover behind rear seats
To remove the cover, pull it in the direction of the arrow Fig. 90►.
Lift the cover to unhook it.
To install the cover, hook it into the side trim mountings on both sides.
Push the cover forwards until it engages.
WARNING
  • The luggage compartment cover should not be used as a storage shelf. Items placed on this cover could cause injury in an accident or if the brakes are applied suddenly.
  • The luggage compartment cover must always be fixed properly – risk of accident!
