Applies to: vehicles with soft top

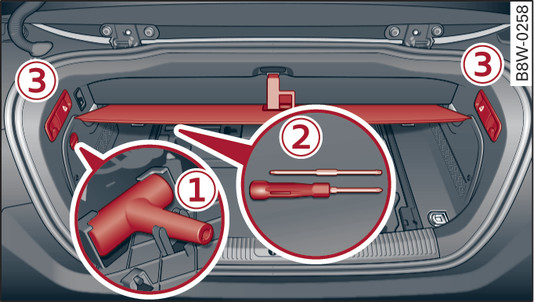

- Fig. 51 Luggage compartment: Removing the tool kit and folding down the backrests
Move the selector lever to position P (automatic gearbox).
Apply the parking brake.
If possible, open all the windows.
Open the luggage compartment and take the release tool -1- Fig. 51► out of the left side trim.
Lift the floor panel by the plastic handle and hook in the handle over the soft top storage box.
Take the hexagon socket insert and flat-bladed screwdriver insert -2- Fig. 51► out of the vehicle tool kit.
Unhook the floor panel again.
Fold down the backrests by pulling the release lever in the side trim -3- Fig. 51►.
Close the boot lid.
Switch off the ignition.
To release the pressure in the hydraulic soft top, pull and hold switch -1- Fig. ► for approx. 10 to 15 seconds.
You should only operate the soft top manually if you need to close it and the power-operated system does not work. It is advisable to have a second person help you. Drive to a qualified workshop soon and have the fault rectified.
- In all the steps required for manual operation of the soft top, there is always a risk of catching your hands or causing injury to others.
- Please ensure that all windows are down before operating the soft top manually.
- Keep well clear of the frame mechanism and other moving parts.
- Do not drive the car if the soft top is not locked in position! Otherwise, the soft top could be blown open by the airstream, which could cause injury or damage to the car (risk of accident).
