Applies to: vehicles with soft top

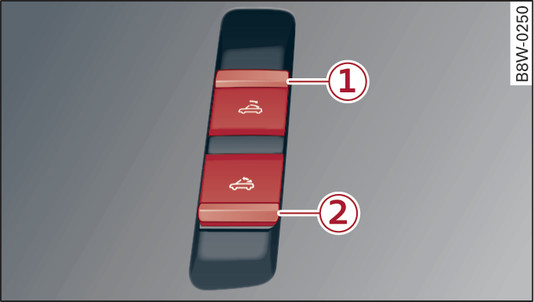

- Fig. 46 Centre console: Soft top control switch
Important: The boot lid must be closed.
Opening and closing the soft top
Switch on the ignition.
To open the soft top, pull and hold switch -1- until the soft top is fully open.
To close the soft top, pull and hold switch -2- until the soft top is fully closed.
Opening and closing the soft top (automatic open/close function)
It is not necessary to hold the switch.
Important: The road speed must be between 6 and 50 km/h. The rear seats must be unoccupied and clear of any objects.
Switch on the ignition.
Briefly pull the switch -1- to open the soft top completely.
Briefly pull the switch -2- to close the soft top completely.
The status of the soft top is shown in the instrument cluster display when the soft top switch is operated.
The soft top can be closed even if the windbreak is fitted link►.
If the soft top does not open/close when you operate the switch, a message will appear link►.
- When operating the soft top make sure that external factors, e.g. wind, do not affect the function of the soft top and do not inconvenience or endanger other road users.
- Since the rearward view is obstructed while the soft top is opening or closing, you should avoid operating the soft top when reversing.
- Do not drive the car if the soft top is not locked in position! Otherwise, the soft top could be blown open by the airstream, which could cause injury or damage to the car (risk of accident).
- When opening and closing the soft top, make sure there is no risk of injury from the moving parts of the frame, etc.
- The headroom in the rear cabin is reduced while the soft top is opening or closing. Please ensure that the rear passengers keep clear of the soft top while it is opening or closing – risk of injury!
CAUTION
To prevent damage to the soft top:
- Do not put any items in the soft top storage box.
- Always ensure that there is sufficient clearance above the soft top when opening or closing it.
Note
- To avoid draining the vehicle battery, do not operate the soft top repeatedly with the engine switched off.
- The soft top can also be operated manually in the event of a malfunction link►. The cause of the fault should be traced and rectified by a qualified workshop as soon as possible.
- If you park the car with the soft top open, remember that this leaves the interior exposed to intruders and to potential damage in sudden adverse weather. Lock any belongings you leave behind in the luggage compartment. Close the soft top before you leave the vehicle unattended.
- The windows in the doors are automatically lowered slightly while the soft top is opening/closing.
