Audi A4 Self-help Fuses and bulbs Changing bulbs for rear...
Applies to: vehicles with bulbs

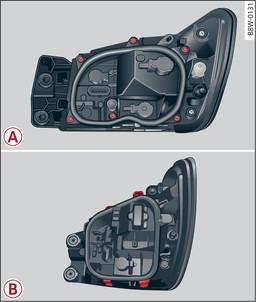

Fig. 337 Rear light: -A- Saloon: Securing screws on bulb carrier, -B- Avant/allroad: Clips on bulb carrier
Fig. 337 Rear light: -A- Saloon: Securing screws on bulb carrier, -B- Avant/allroad: Clips on bulb carrier

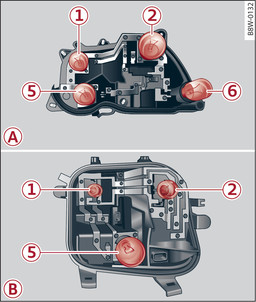

Fig. 338 Bulb carrier: -A- Saloon, -B- Avant/allroad: Position of bulbs
Fig. 338 Bulb carrier: -A- Saloon, -B- Avant/allroad: Position of bulbs
Removing
Remove the rear light unit from the body panel link.
Applies to: Saloon
Remove the screws securing the bulb carrier -A- Fig. 337.

Applies to: Avant/allroad
Unfasten the clips securing the bulb carrier -B- Fig. 337.

Detach the bulb carrier -A- or -B- Fig. 338.
Pull the defective bulb out of the plug-in holder or turn it to remove it from the bayonet holder.
Installing
Plug the new bulb into the plug-in holder or turn it to secure it in the bayonet holder.
Attach the bulb carrier.
Re-install the rear light.
Applies to: Saloon
Position -A- Fig. 338
Bulb function
-1-
Brake light / tail light
-2-
Brake light / tail light
-5-
Turn signal
-6-
Reversing light
Applies to: Avant/allroad
Position -B- Fig. 338
Bulb function
-1-
Brake light / tail light
-2-
Brake light / tail light
-5-
Turn signal
