Applies to: vehicles with tool kit, tyre repair kit and jack

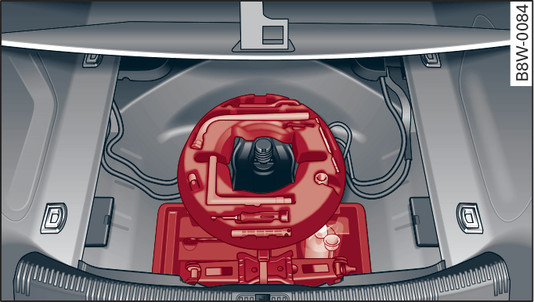

- Fig. 307 Applies to: SaloonLuggage compartment: Tools, jack, tyre repair kit and compressor

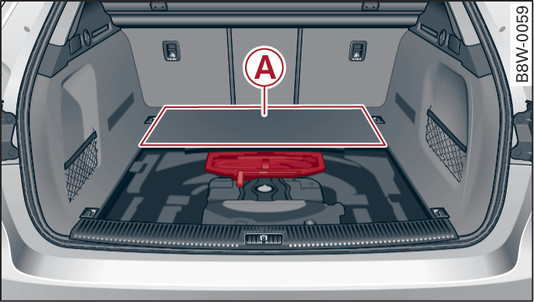

- Fig. 308 Applies to: Avant/allroadLuggage compartment: Tools, jack, tyre repair kit and compressor
The tool kit, jack, tyre repair kit and compressor are stored under the floor panel in the luggage compartment.
Applies to: Saloon
Lift the floor panel by the plastic handle and hook the handle into the luggage compartment seal Fig. 307►.
Applies to: Avant/allroad
Remove the floor panel Fig. 308►.
Applies to: vehicles with spare wheel
Turn the knob anti-clockwise and take out the spare wheel.
Applies to: Saloon
Unhook the floor panel before closing the boot lid.
On some vehicles, the tools, tyre repair kit and compressor are located underneath a further cover, which may be secured by a knob.
Applies to: Avant/allroad
On some vehicles, the tool kit is located immediately underneath the floor panel -A- Fig. 308► behind the rear seats.
Note
The jack in your vehicle is maintenance-free.
