Applies to: vehicles with navigation system and street view
Depending on the equipment in your vehicle, the active route guidance may be displayed in the street view* on the driver information system.

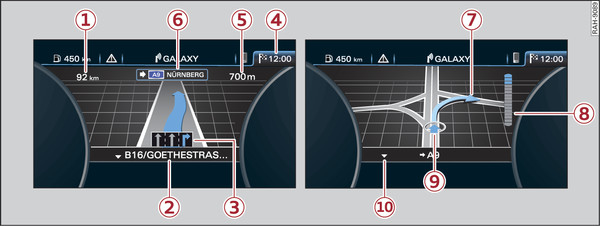

- Fig. 197 Analogue instrument cluster: Example of a turn-off displayed in street view
Important: A destination must have been entered link►, the route guidance function must have been started, and the navigation tab must be displayed.
The following information is displayed on the driver information system, depending on the equipment installed in your vehicle Fig. 197►:
| -1- | Distance to destination/stopover |
| -2- | Display of motorway, major road or street prior to a turn-off |
| -3- | Lane recommendation |
| -4- | Estimated time of arrival |
| -5- | Distance to turn-off |
| -6- | Display of motorway, major road or street you are driving on or about to turn into |
| -7- | Arrow indicating direction of upcoming turn-off |
| -8- | If an arrow is displayed, a bar graph will also appear. The fewer bars are displayed, the shorter the distance to the turn-off point. |
| -9- | Current vehicle position |
| -10- | Additional information (on-board computer) |
The following functions are available when route guidance is active:
- To adjust the volume of the navigation cues: Scroll the right thumbwheel up/down while a navigation cue is being played.
WARNING
The route calculated by the navigation system is a recommendation of how best to reach a destination. Pay attention to traffic lights, no-stopping signs, lane change restrictions, one-way streets, etc.
Note
- Also refer to link►.
- An exclamation mark “!” in front of the street name indicates that the navigation data of the MMI system do not contain all the information on this street or street section. Pay attention to traffic rules such as one-way streets or pedestrian zones.
